13.3-Inch Wall-Mount Healthcare Tablet – Android Medical RK3568 Hospital Tablet PC for Industrial and Medical Applications
This medical-grade tablet is specifically designed for healthcare environments, offering a seamless blend of performance and security. Powered by a high-performance processor, it ensures smooth operation for medical professionals and patients alike. The device features a privacy camera, allowing users to manually hide the camera for added confidentiality. Additionally, the one-click call handle enables patients to easily and quickly communicate with medical staff, enhancing both patient care and work efficiency. This tablet is an essential tool for improving healthcare workflows and supporting secure, effective communication in medical settings.
- Video
- Features
- Parameter
- Products Description
- Packaging
- Recommended Products
Video
Features
- CPU:RK3568 Quad core cor-tex A55
- RAM:2/4 GB
- Memory:16/32/64 GB
- System:Android 11
- Panel: 13.3"LCD panel
- Resolution:1920x1080
- Support USB、Type-C、RJ45 Input
- Support NFC POE Power
- 5.0M/P,front camera
Tablet Key Features
Parameter
| System | |
| CPU | RK3568 Quad core cor-tex A55 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 11 |

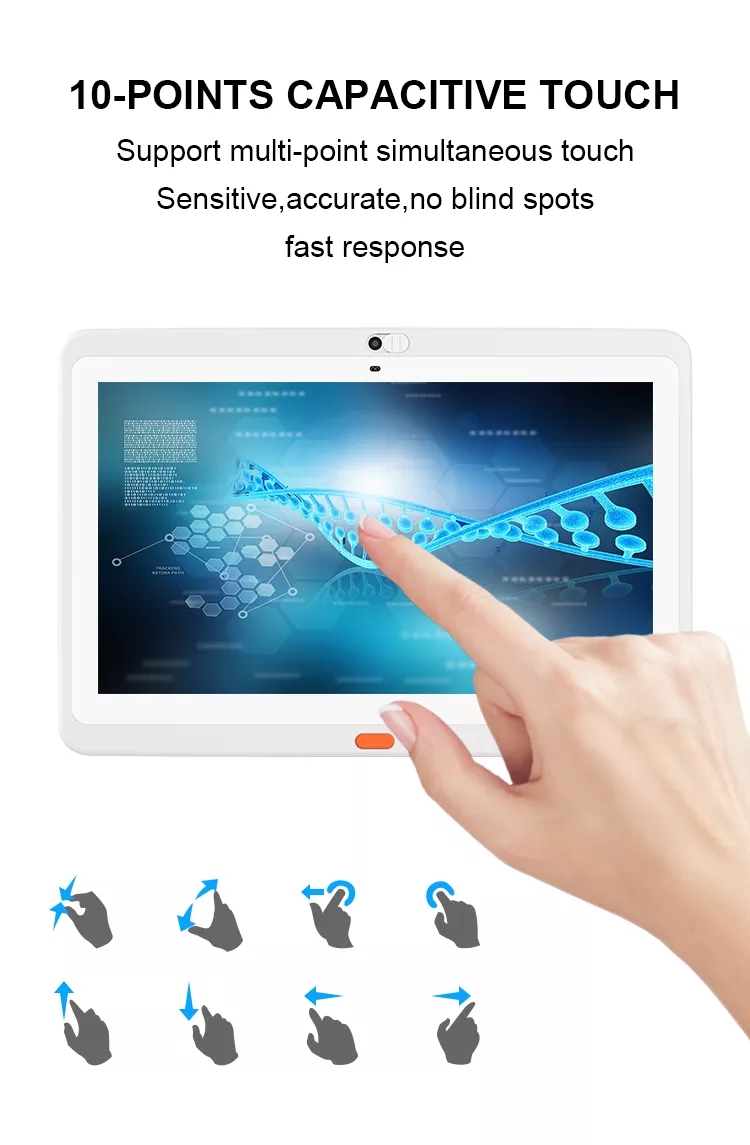

| Touch screen | 10-Point capacitive touch |
| Display | |
| Panel | 13.3"LCD panel |
| Resolution | 1920*1080 |
| Display mode | Normally black |
| viewing angle | 80/80/80/80(L/R/U/D) |
| Contrast ratio | 600 |
| Luminance | 250cdm2 |
| Aspect Ratio | ,16:9 |
| Network | |
| WiFi | 802.11b/g/n/ac,2.4G/5G |
| Buletooth | Bluetooth 5.0 |
| Ethernet | 100M/1000M |
| Serial port | Serial port( TTL format) |
| Interface | |
| Type-c | USB OTG Only |
| Power Jack | DC power input |
| RJ45 | Ethernet interface ( POE function standard, IEEE802.3at,POE+,class 4， 25.5W ) |
| Voice control port | 6P -2.0mm Connecter ( Connect to exterial Hand-held Microphone ) |
| USB | USB Host 2.0 |
| Serial | 8PIN, 2.0MM ( TTL fomat) |
| Earphone | 3.5mm earphone +microphone |
| Media play | |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| Other | |
| Wall mounting bracket | 100mm*100mm wall mounting |
| Light sensor | Support |
| NFC | Optional ,(NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica) |
| RFID | Optional , 125k,ISO/IEC 11784/11785,Support to EM4100，TK4100/GK4100，EM4305，T5577 |
| Speaker | 2*3W |
| Camera | Routine angle 5.0M/P |
| Microphone | Standard Dual microphone |
| Language | Multi-language |
| Working temp | 0--40degree |
| Accessories | |
| Adapter | Adapter,12V/2A |
| User manual | yes |
| Hand-held Microphone | standard |
Products Description
With a large screen of 13.3 inches, compared to 10.1 inches, the screen is larger, the display content is richer, and the pictures watching are clearer, suitable for displaying other important information such as medical data and images. For a 15.6 -inch screen, 13.3 weighs lighter, more convenient to carry movement, and user use.
The flat tablet is designed with streamlined type, with plastic shells, which is easy to clean and disinfection, and is suitable for medical environment with strict hygiene requirements. With the high -definition resolution of 1920x1080, the screen can display more high -definition images. The viewing of charts and images is clearer and better.
The RK3568 4-core ARM Cortex-A55 architecture processor. High performance. Low power consumption, the equipment can run for a long time. Support 4K video decoding and display, you can observe CT scanning or MRI image on the tablet, which is more convenient for doctors to diagnose. The processor is also equipped with AI capabilities, supporting a variety of extension interfaces, and increasing the flexible compatibility of the device. RK3568 has temperature control management, suitable for long -term high load operation, especially suitable for hospital use.

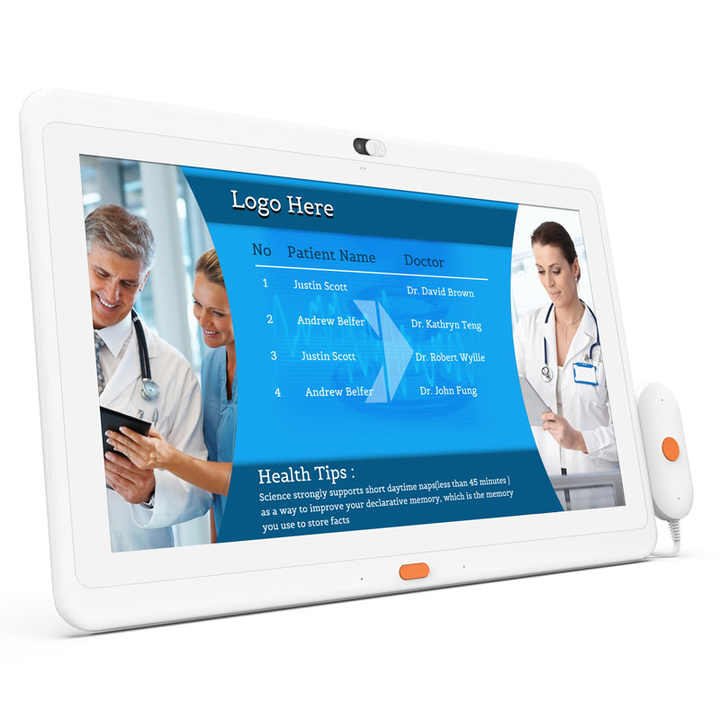

The 13.3-inch Healthcare Industrial Tablet features a video intercom for uninterrupted communication, allowing two-way calls with clear reception. The tablet's privacy camera can be manually hidden to protect patient confidentiality, ensuring both security and functionality. With a front-facing 500W camera, it supports video consultations and internal communications, making it a versatile solution for healthcare environments. The wall-mount design optimizes space while providing easy access to critical information. .

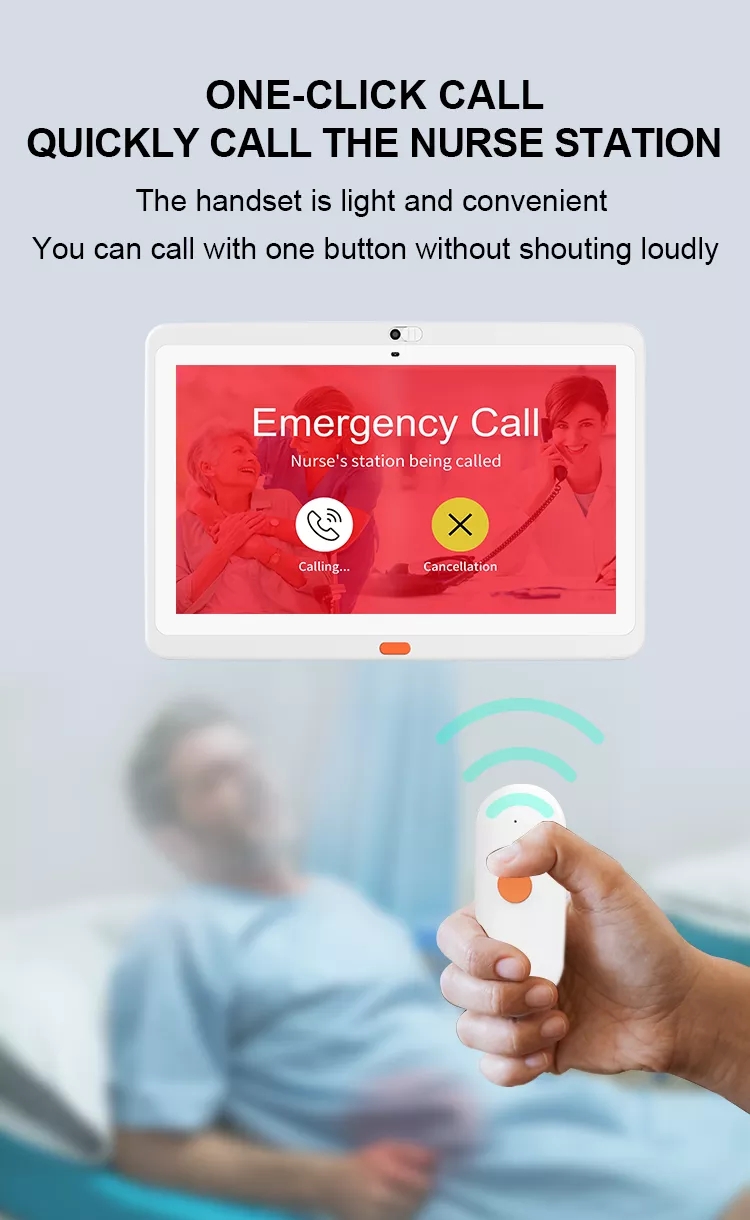

The 13.3-inch Healthcare Industrial Tablet offers a one-click emergency call feature, allowing patients to quickly alert the nurse station without needing to shout. The lightweight and convenient handset makes it easy for patients to call for assistance with just the push of a button. This seamless integration ensures that urgent requests are communicated instantly, enhancing patient safety and improving response times in healthcare settings. The intuitive system provides clear notifications to the nurse station, ensuring that help is on the way when needed most.
The 133-inch Healthcare Industrial Tablet features POE (Power over Ethernet) technology, streamlining installation and reducing cable clutter. With a single network cable, both data and power are transmitted simultaneously, eliminating the need for an additional power adapter. This secure and convenient setup simplifies device management, making it an ideal solution for healthcare environments where ease of installation and efficiency are paramount. The tablet's integration with POE enhances its functionality while ensuring a clean and organized workspace.

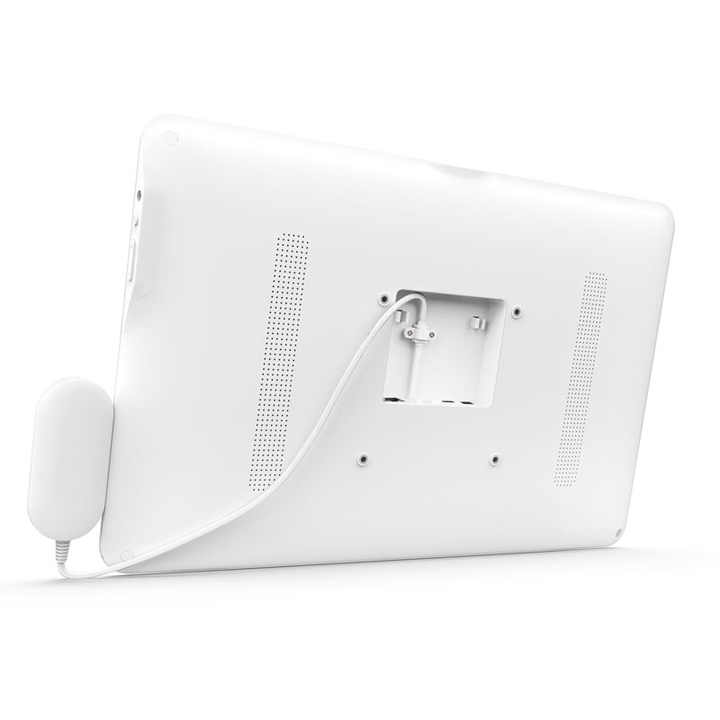

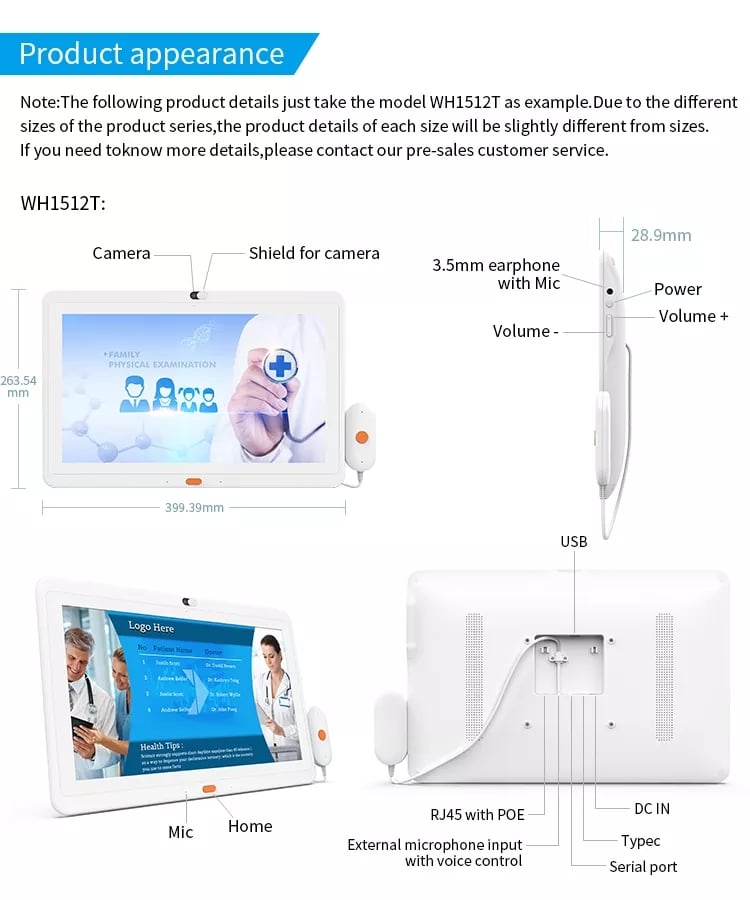

The 13.3-inch Healthcare Industrial Tablet is designed with both functionality and ease of use in mind. The tablet includes a camera shield for privacy protection and features a 3.5mm earphone jack with a microphone for clear communication. On the side, you'll find the power button and volume controls, making it easy to adjust settings for optimal use. The back of the device is equipped with essential ports, including USB, RJ45 with POE for network connectivity, DC IN, Type-C, and a serial port, allowing seamless integration into various healthcare systems. This design ensures flexibility in connection options while maintaining a compact and user-friendly interface.
Installation method: Use an electric drill to punch the wall, install screws, install the wall fixed bracket, and then put the tablet card into the bracket.
How to use: Connect the network cable, press the power button to start the tablet, set the network connection, download the software you need and log in, turn on the NFC function, you can use it normally.
Packaging
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
