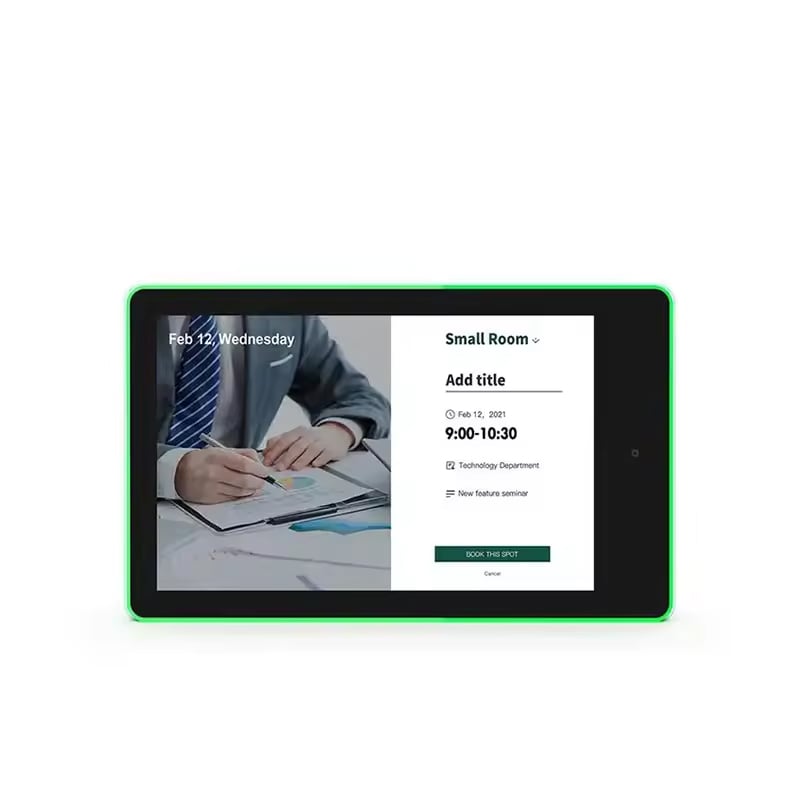

10.1Inch RK3566 Wall Mounted Conference Tablet POE NFC IPS Panel Meeting Room Booking Android Tablet With Four Sides Light Bar
The 10.1-inch Android conference room tablet is designed to modernize and simplify meeting room management. Powered by the RK3566 quad-core processor and running on Android 11 or 12, this sleek, wall-mounted device supports Power over Ethernet (POE) for easy installation and continuous power, reducing cable clutter.
Equipped with a high-resolution IPS panel, the screen delivers vibrant visuals and wide viewing angles. Its integrated NFC module enables contactless check-ins or secure identity verification, while the four-sided LED light bar provides real-time room status indication — red for occupied, green for available, and customizable colors for alerts.

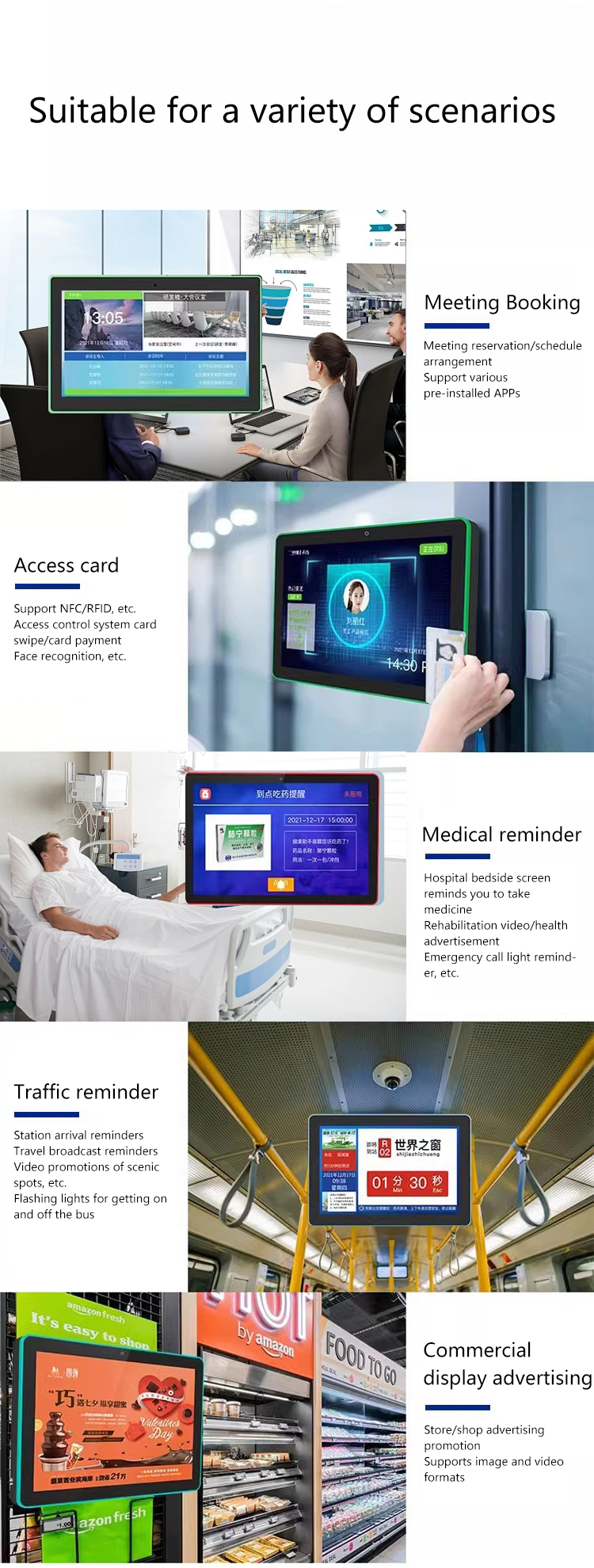

Ideal for office buildings, co-working spaces, and corporate campuses, this smart Android tablet ensures efficient room booking, enhances visitor experience, and adds a modern digital touch to any workspace.
- Video
- Features
- Parameter
- Products Description
- Packaging
- Recommended Products
Video

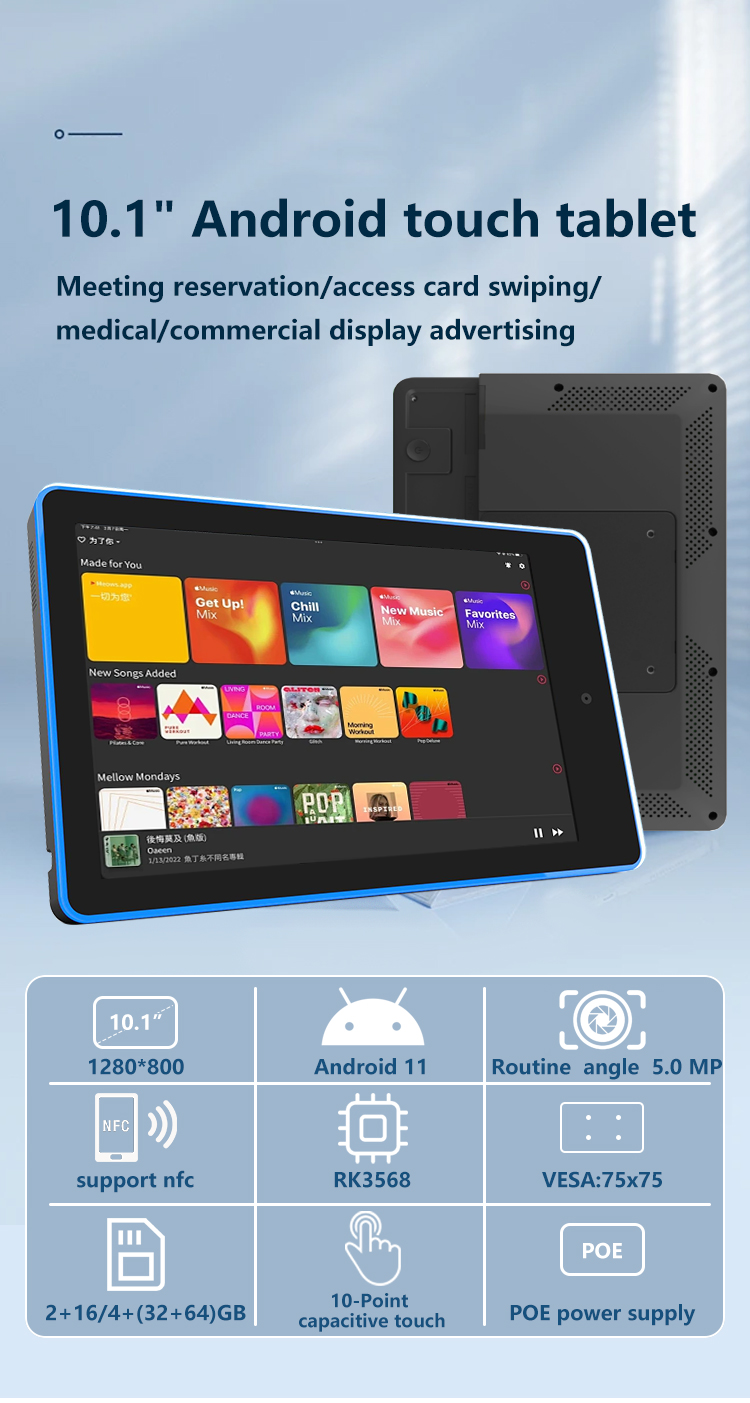

Features
- Panel: 10.1"LCD panel
- CPU:RK3566
- RAM:2GB

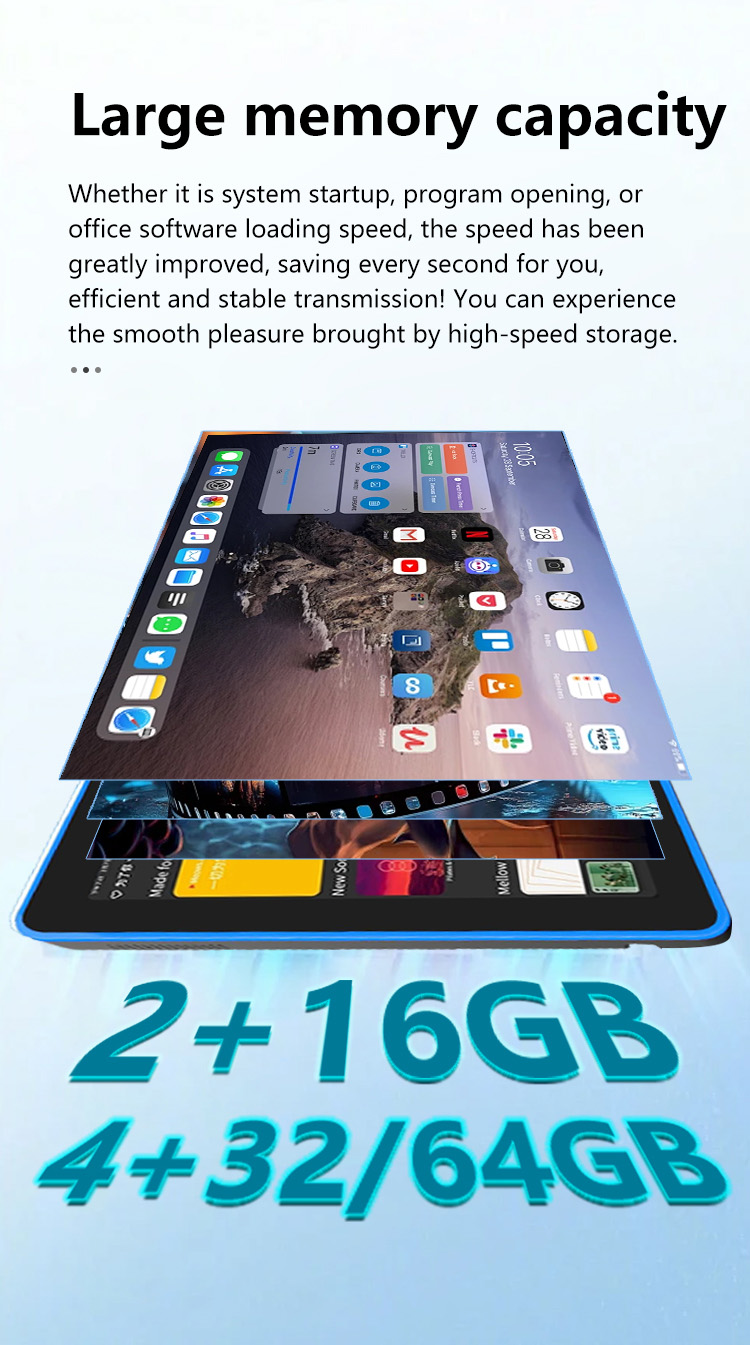

- Memory:16GB
- Resolution:1280x800
- System:Android 11
- Support NFC POE
Tablet Key Features
Parameter
| System | |
| CPU | RK3566，Quad-core A55 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 11 |

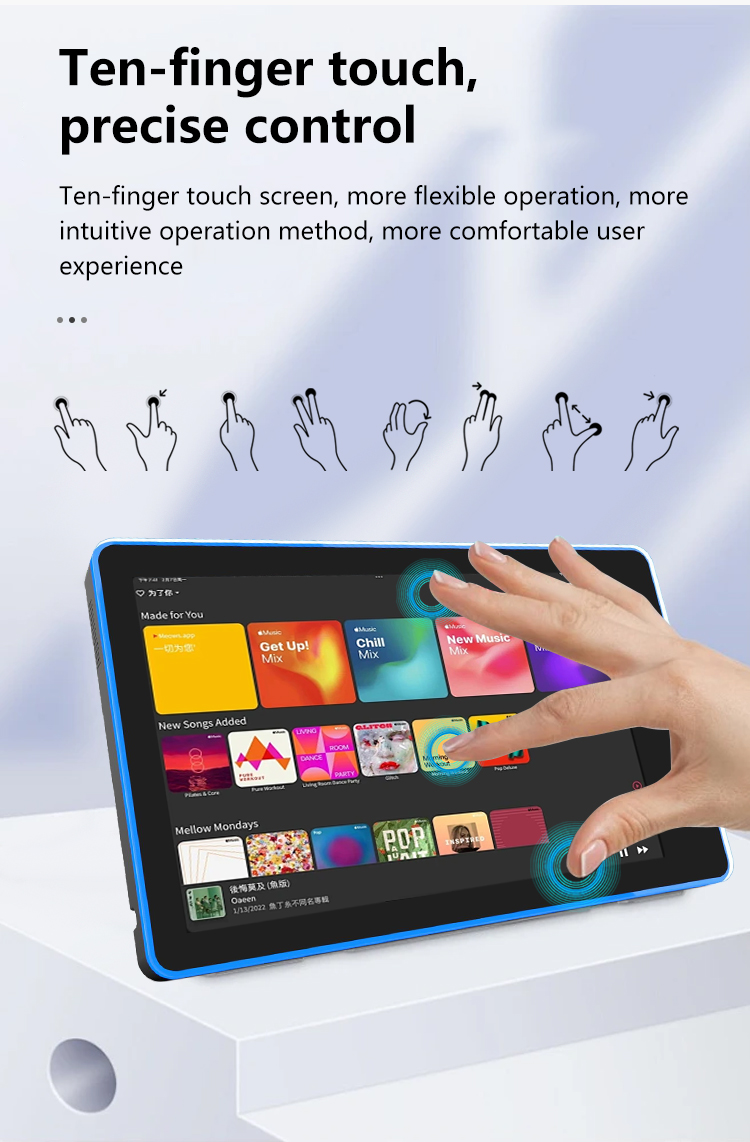

| Touch screen | 10-Point capacitive touch |
| Display | |
| Panel | 10.1"LCD panel |
| Resolution | 1280*800 |
| Display mode | Normally black |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 250cd/m2 |
| Aspect Ratio | 16:10 |
| Network | |
| WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet |
| Buletooth | Bluetooth 4.0 |
| Interface | |
| Card slot | SD card |
| USB | USB 3.0 host |
| Micro USB | Micro USB OTG |
| USB | USB for serial(RS232 format) |
| RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4， 25.5W ) |
| Power jack | DC power input |
| Earphone | 3.5mm earphone with microphone |
| Media play | |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| Other | |
| VESA | 75x75mm |
| NFC | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Camera | Front camera 2.0M/P /Binocular camera(optional) |
| Microphone | yes |
| Speaker | 2*2W |
| LED light bar | LED light bar with RGB and mixed color |
| Working temp | 0--40degree |
| Language | Multi-language |
| Accessories | |
| Adapter | Adapter,12V/1.5A |
| User manual | yes |
Products Description
10.1Inch screen
The 10.1-inch screen strikes the perfect balance between visibility and compactness, making it an ideal choice for modern meeting room tablets. Its portable size allows for seamless wall mounting outside conference rooms, while still offering a clear, responsive display for room scheduling, availability status, and calendar integration. With its IPS panel and Android system, the 10.1 inch meeting tablet delivers excellent viewing angles and touch performance — all in a sleek, space-saving design.

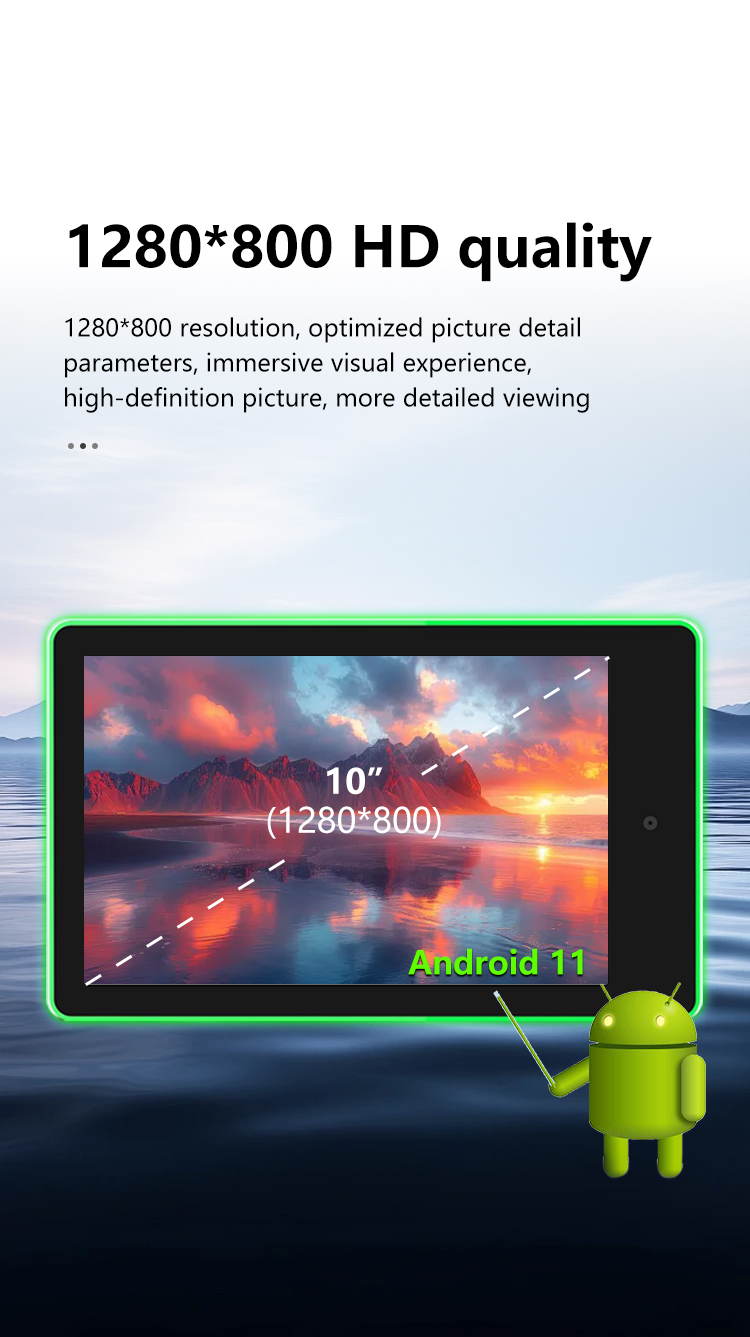

1280x800 resolution
The 10.1-inch conference tablet with 1280x800 resolution offers the ideal balance of clarity and compactness for modern office environments. Its HD display ensures crisp visuals and smooth touch performance, making it perfect for wall-mounted room booking systems and meeting status displays. The size fits seamlessly outside meeting rooms, while the resolution provides enough detail for schedules, calendars, and real-time updates. This makes the 10.1 inch Android meeting tablet a smart, space-efficient solution for any workspace.
A+ Screen
Equipped with a 10.1-inch A+ grade IPS screen and 1280x800 resolution, this Android conference room tablet delivers outstanding display quality with vibrant colors, sharp text, and wide viewing angles. The A+ screen ensures zero bright spots and minimal defects, offering professional-grade clarity ideal for meeting room schedules and real-time status display. Its compact size is perfect for wall mounting, while the HD resolution ensures every calendar detail is easy to read. Combined with features like POE, NFC, and Android OS, this 10.1 inch A+ screen tablet is the smart choice for modern office environments.
Four sides led lights
The four-sided LED light design provides a highly visible, real-time room status indicator, making it easy for users to recognize meeting room availability at a glance. Whether it’s green for available, red for occupied, or custom colors for special alerts, the LED bars on all four edges ensure 360-degree visibility from any angle in the hallway or open office space. This feature enhances communication efficiency, reduces scheduling confusion, and adds a modern, high-tech appearance to your workspace. Ideal for smart meeting room tablets and wall-mounted booking systems.
RK3566 CPU
Powered by the RK3566 quad-core processor, this Android tablet ensures fast, stable, and energy-efficient performance for continuous commercial use. The RK3566 CPU delivers excellent processing power for handling real-time meeting room schedules, calendar sync, NFC operations, and multi-app tasks with ease. Its optimized architecture enhances system responsiveness while reducing power consumption, making it ideal for wall-mounted tablets in offices, conference rooms, and smart building environments.

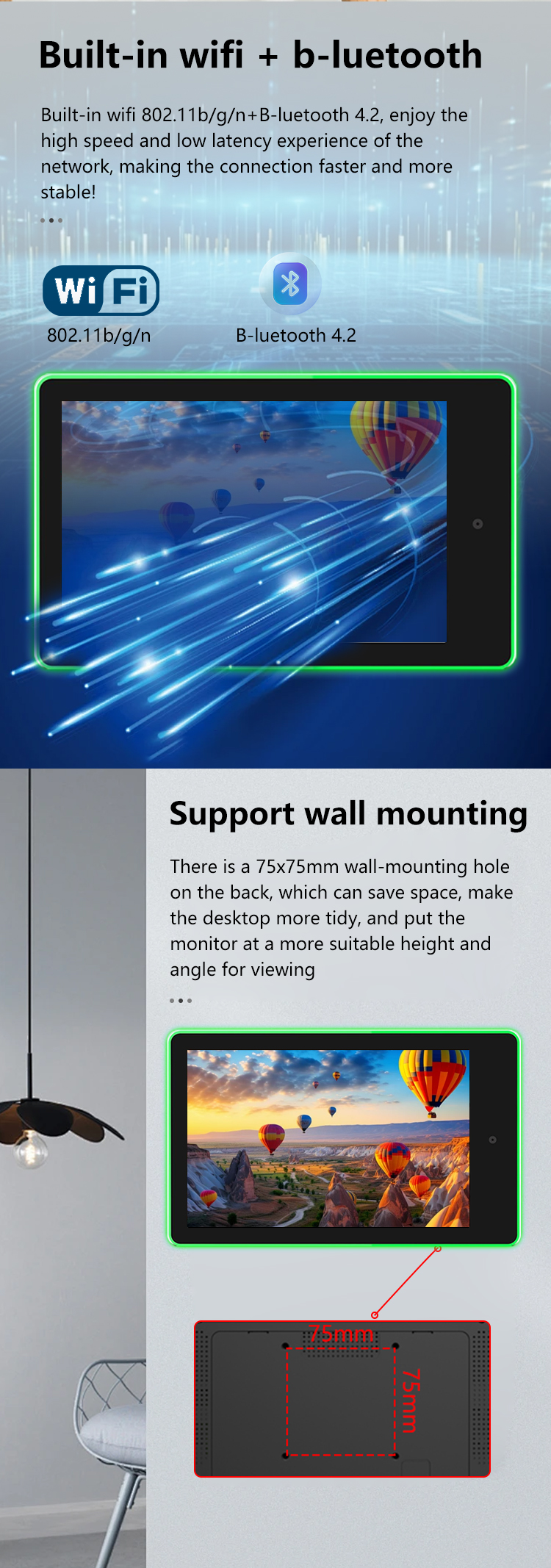

Wall Mounted design
The wall-mounted design offers a sleek, space-saving solution for modern offices, retail stores, and public environments. By securely mounting the tablet to the wall, it not only reduces desktop clutter but also enhances visibility and accessibility for users. Ideal for high-traffic areas like meeting room entrances or retail aisles, the wall-mounted installation ensures the screen is always in view and safely positioned. Its minimalist look blends seamlessly with professional interiors while supporting 24/7 operation without the need for additional stands or fixtures.

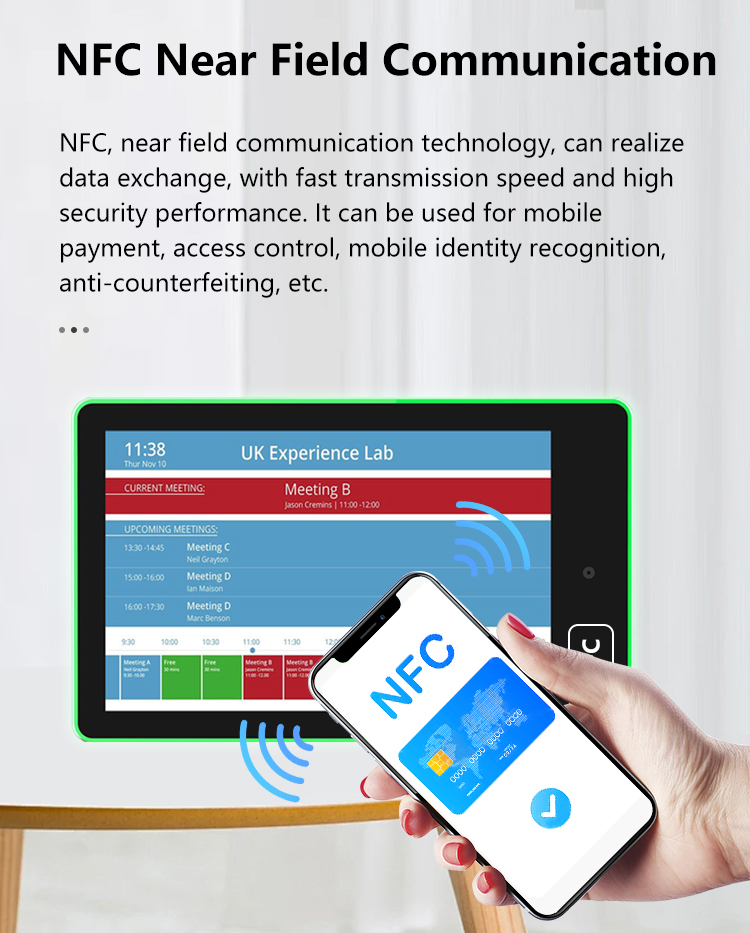

NFC Function
Integrated NFC technology enables quick and secure contactless interactions, making the tablet perfect for access control, employee check-ins, or customer loyalty programs. With NFC support, users can simply tap their NFC-enabled cards, smartphones, or wearables to the device for instant authentication or information exchange. This feature enhances convenience, speeds up workflows, and supports modern smart office and retail environments demanding seamless, touchless operations.

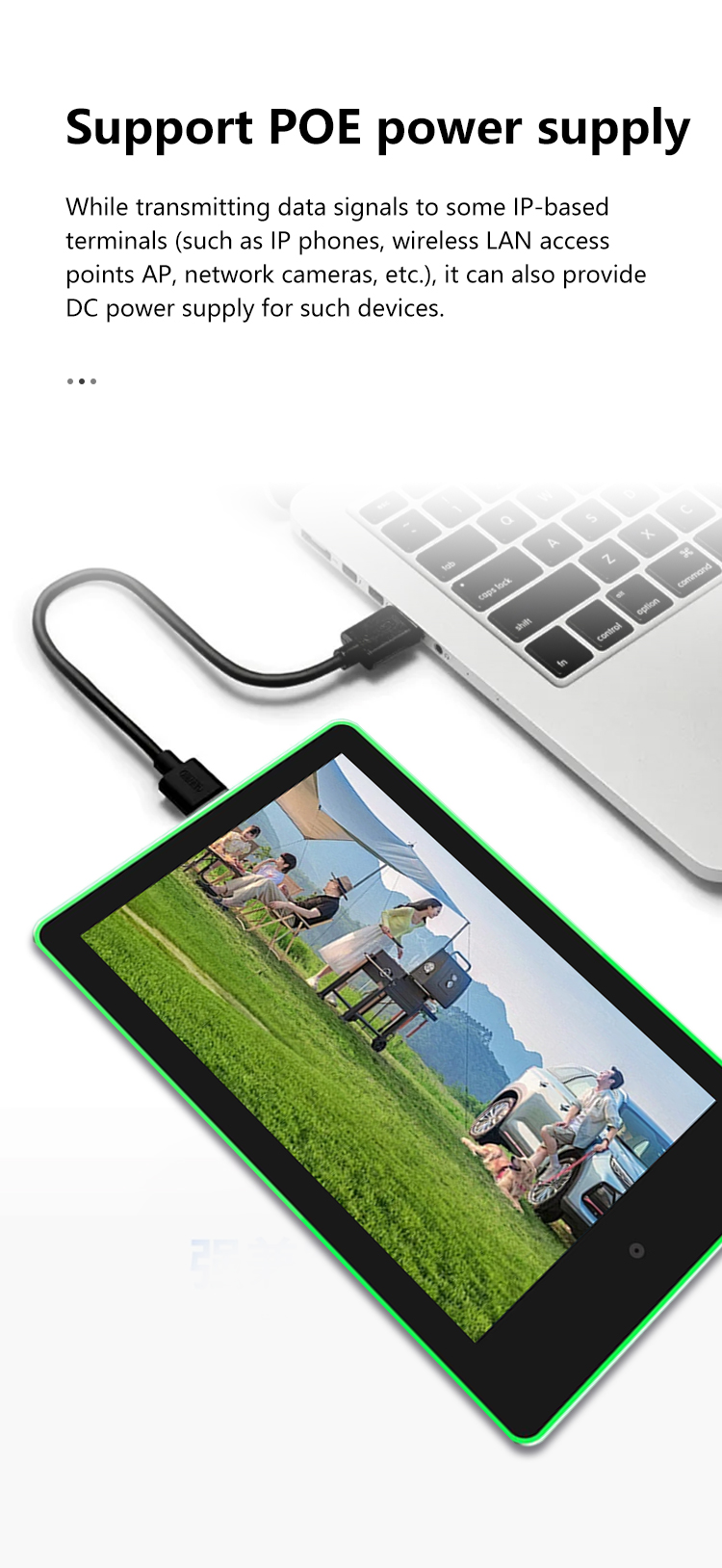

POE Function
Power over Ethernet (POE) technology simplifies installation by delivering both power and network connectivity through a single Ethernet cable. This eliminates the need for separate power adapters or complex wiring, reducing clutter and installation costs. POE-enabled wall-mounted tablets are ideal for conference rooms, retail spaces, and smart office environments, ensuring reliable connectivity and continuous operation with minimal setup.
Packaging
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
