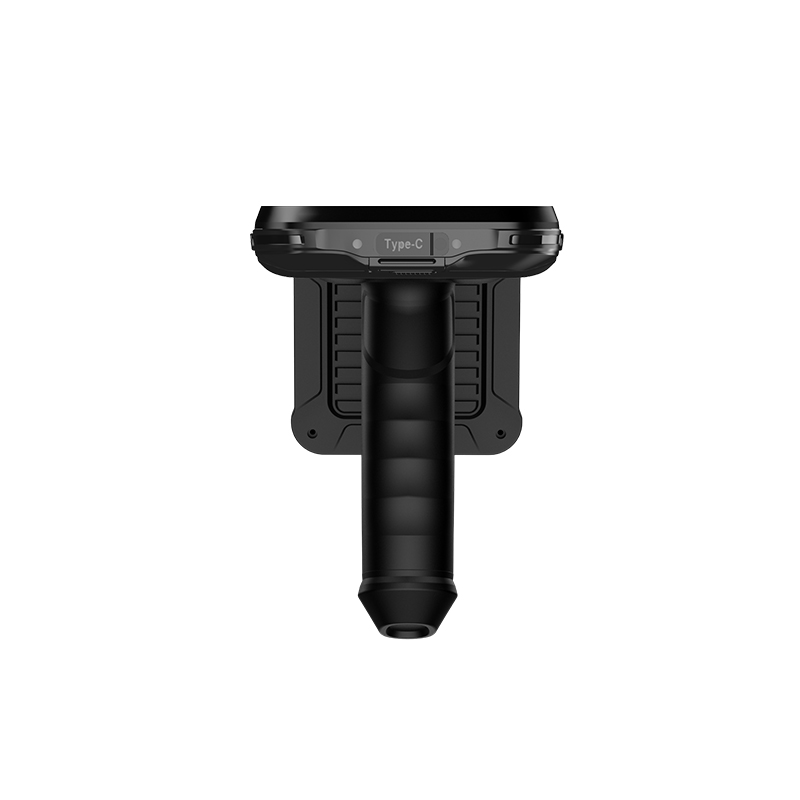

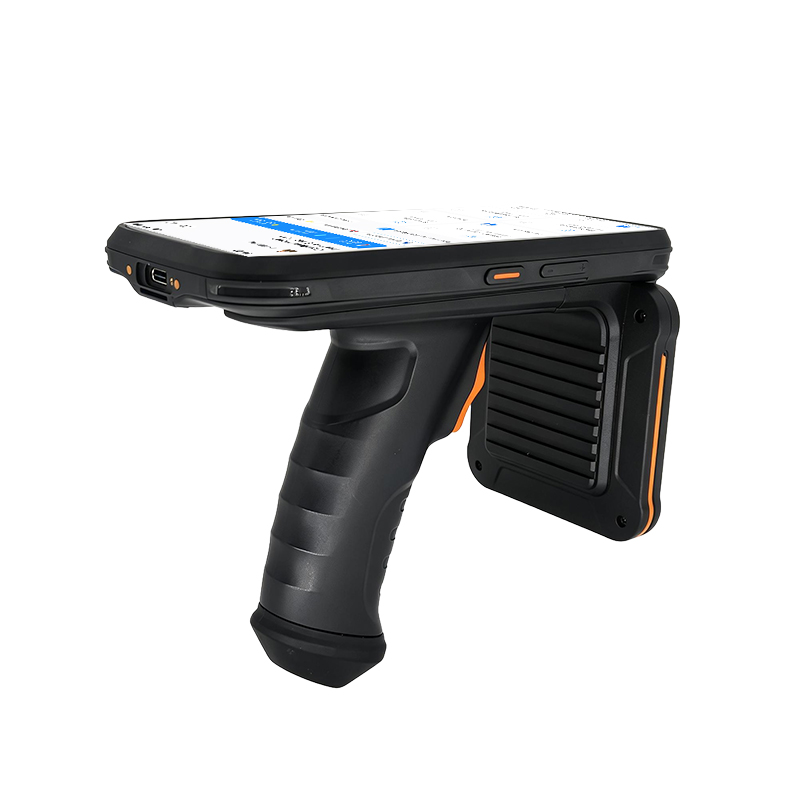

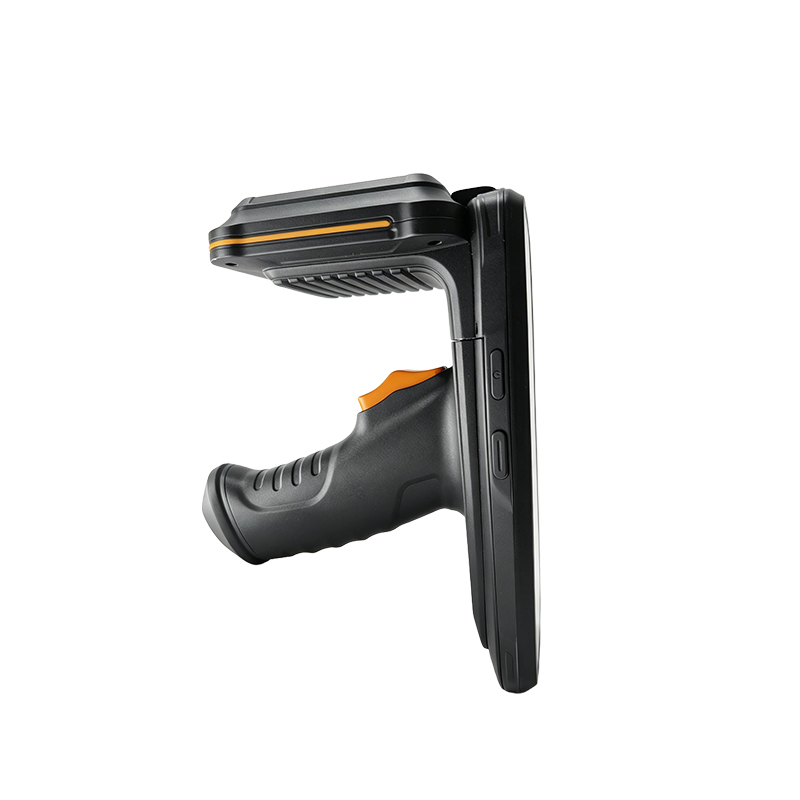

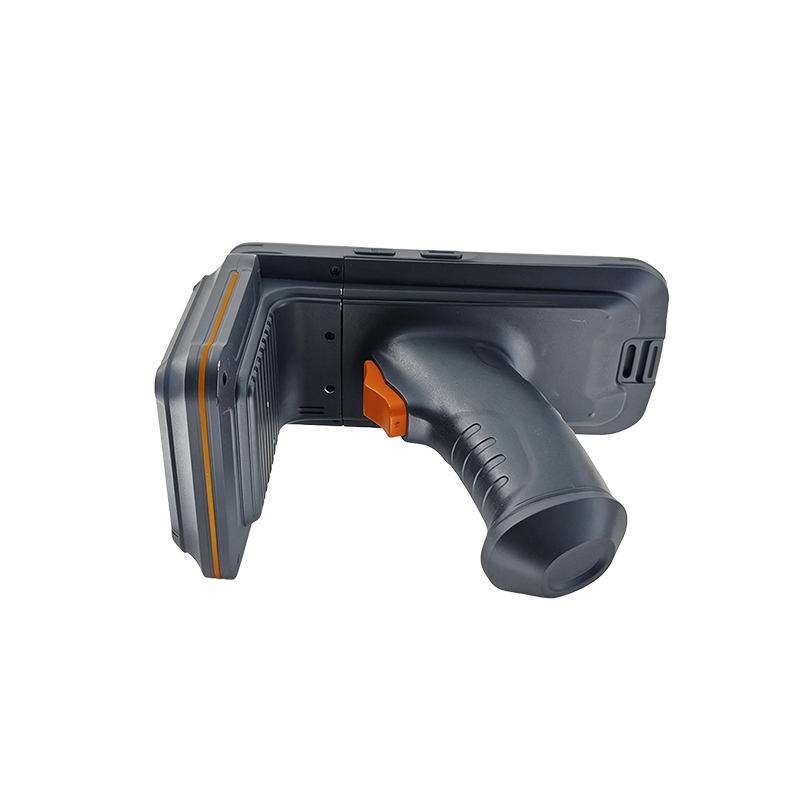

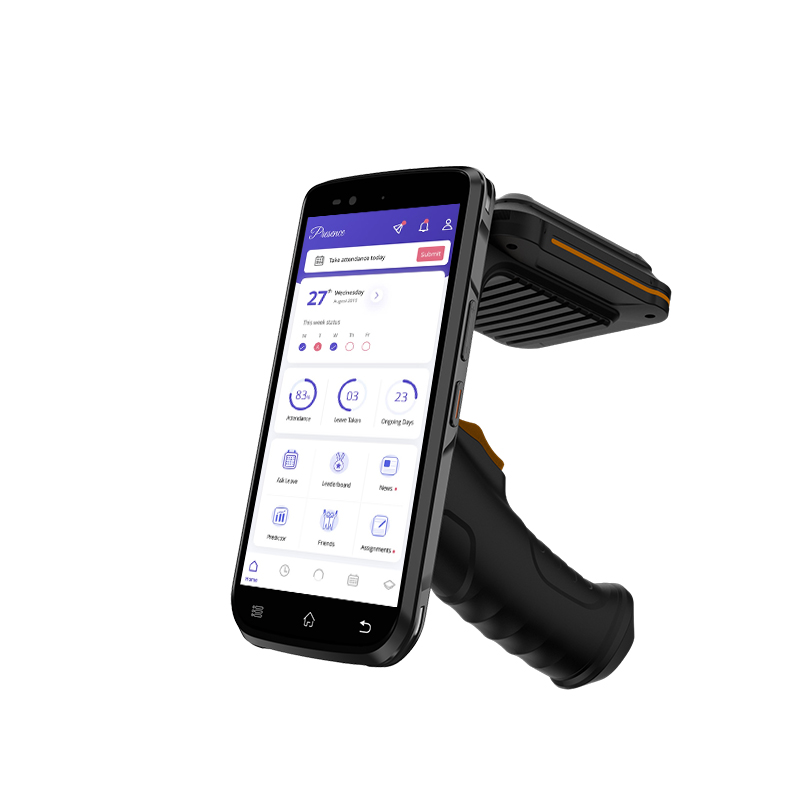

N73SH UHF RFID Android Handheld Terminal for Inventory and Asset Tracking

The N73SH is a long-range UHF RFID Android handheld terminal combining RFID, 1D/2D barcode scanning, and mobile connectivity for inventory, asset tracking, logistics, and enterprise data collection.

Features
Parameter
Products Description
Recommended Products

Features

· Up to 25m long-range UHF RFID reading for efficient inventory and asset identification

· EPC C1 Gen2 / ISO 18000-6C support for common UHF RFID applications

· Integrated 1D/2D barcode scanning for flexible data collection

· Android platform with 4G, Wi-Fi, Bluetooth, and GPS connectivity

· 11550mAh high-capacity battery for extended mobile operations

· Optional NFC and PSAM for expanded enterprise data collection

Parameter

Dimensions	178 × 83 × 17 mm
Weight	641g
Display	6 inch IPS Color Display
Resolution	720 × 1440

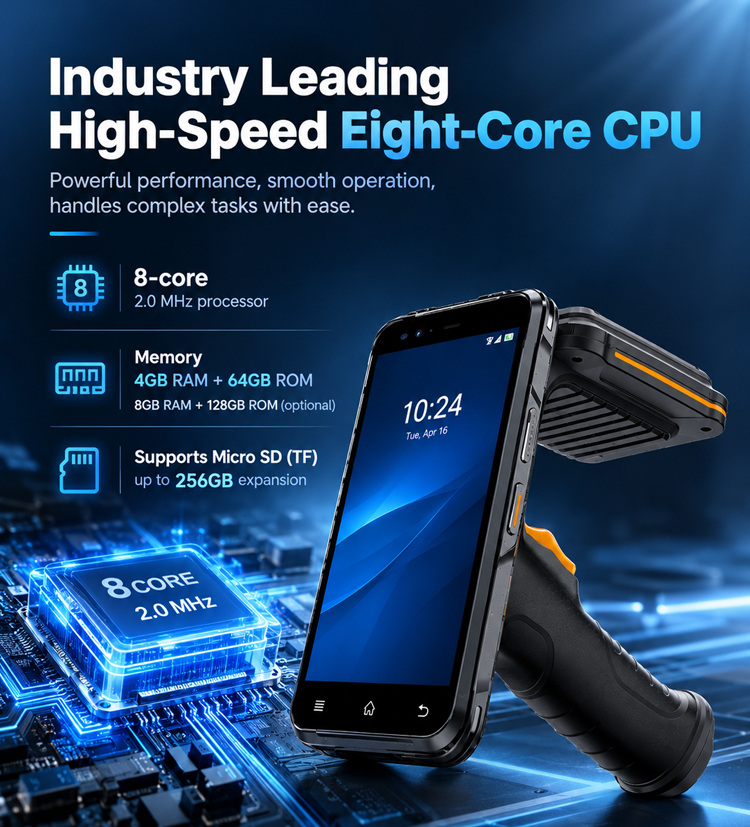

Processor	Octa-Core 2.0GHz
OS	Android 12.0
Memory	4GB + 64GB / 8GB + 128GB
Battery	11,550mAh
Working Time	>8 Hours
Cellular	4G / 3G / 2G
Wi-Fi	2.4GHz / 5GHz
Bluetooth	Bluetooth 5.0
GNSS	GPS / GLONASS / Galileo / BeiDou
Barcode	1D/2D Barcode
Camera	13MP Rear / 5MP Front
Drop	1.2m
Protection	IP67

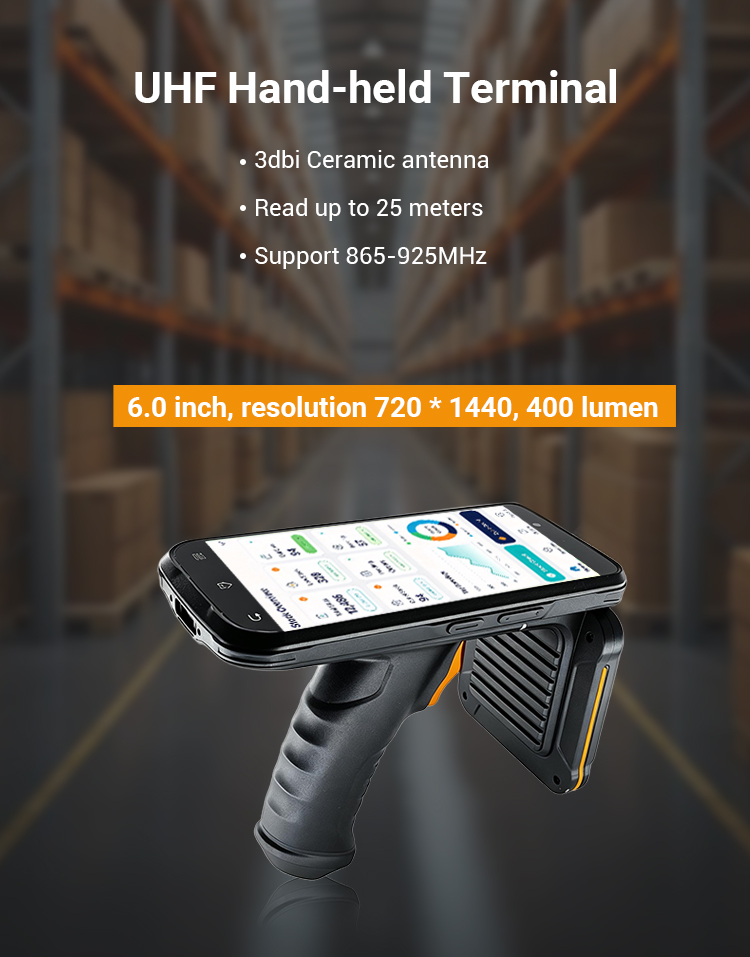

UHF RFID Specifications
Frequency	865–868 / 902–928 / 920–925MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	3dBi Ceramic Antenna
Reading Distance	Up to 25m

Products Description

Long-Range UHF RFID Reading

The N73SH works as a long range UHF RFID handheld reader, with a specified reading distance of up to 25 meters under suitable tag, antenna, and environmental conditions. This makes it suitable for inventory checks, asset identification, and warehouse operations where operators need to collect RFID data across a larger working area.

EPC C1 Gen2 / ISO 18000-6C Support
Supporting EPC C1 Gen2 / ISO 18000-6C, the N73SH is designed for widely used UHF RFID applications and can be configured for different regional frequency requirements. Buyers can evaluate the terminal based on their existing RFID tags, deployment region, and application requirements.

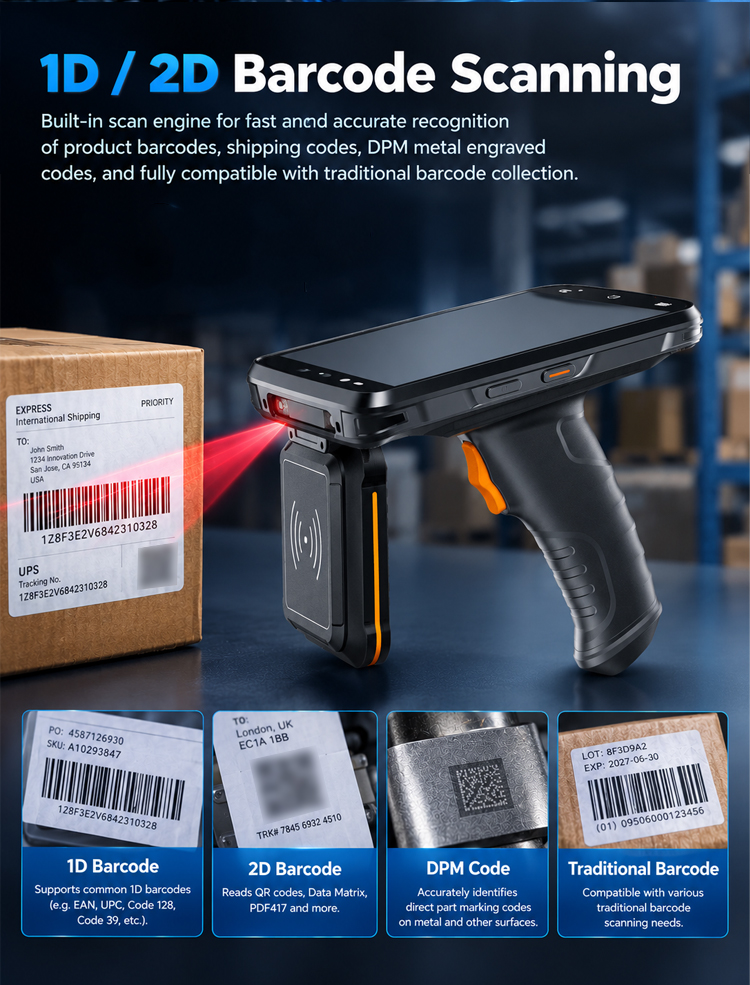

RFID and 1D/2D Barcode Scanning
The N73SH combines RFID and barcode data collection in one Android terminal. Operators can use RFID for bulk identification and switch to barcode scanning when individual item verification is required. This makes it a practical RFID barcode handheld terminal for warehouse inventory, logistics, manufacturing, retail, and asset management workflows.

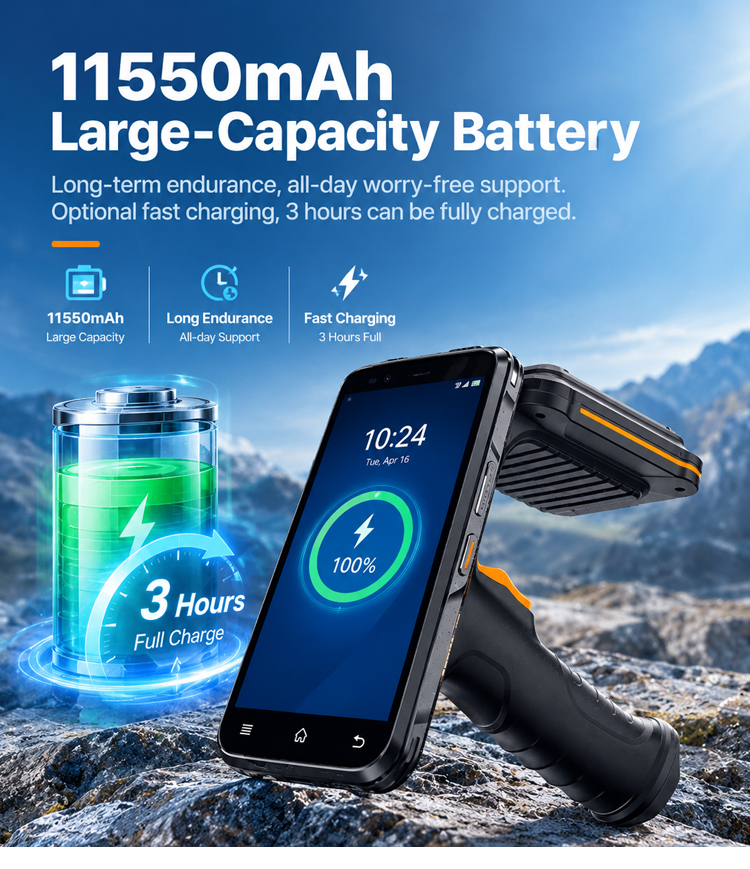

11550mAh Battery for Extended Mobile Data Collection
The 11550mAh battery provides substantial capacity for extended mobile operations. It supports workflows such as stock taking, warehouse inventory checks, asset audits, and logistics data collection where operators may spend long periods away from fixed workstations.

Designed for Different Business Applications
With Android, 4G, Wi-Fi, Bluetooth, GPS, camera, and optional NFC and PSAM, the N73SH can be configured according to different mobile data collection requirements. Distributors, system integrators, and enterprise buyers can evaluate it as an RFID inventory management handheld, RFID asset tracking device, UHF RFID logistics scanner, or Android RFID data collector based on their specific workflow and deployment environment.
