21.5Inch Wall Mounted Advertising Tablet PC RK3568 NFC POE Wooden Frame Commercial Android 14 Tablet
Modern, Stylish, and Built for Business.
This 21.5-inch commercial-grade Android tablet is designed for wall-mounted digital signage, smart retail, and self-service applications. Powered by a reliable RK3568 processor and running on the latest Android 14 system, it ensures smooth performance and long-term stability.
✔️ Elegant Wooden Frame – Blends technology with interior aesthetics, ideal for high-end environments like hotels, cafes, museums, and galleries.
✔️ NFC Integration – Perfect for contactless check-ins, loyalty programs, and interactive displays.
✔️ POE Support – Simplifies installation with power and data through a single cable.
✔️ Full HD IPS Display – Sharp, vibrant visuals for advertisements and customer engagement.
✔️ Customizable – OEM/ODM available for logo, UI, ports, frame design, and more.
Whether you’re deploying in hospitality, retail, or public space projects, this wall-mounted Android tablet offers both functionality and style.
? OEM & Branding Ready | CE/FCC/RoHS Certified | Global Shipping Available
- Video
- Features
- Parameter
- Products Description
- Packaging
- Recommended Products
Video
Features
- CPU:RK3568
- RAM:4 GB
- Memory:32 GB
- System:Android 14
- Panel: 21.5 Inch LCD Panel
- Resolution: 1920x1080
- Support NFC/RFID POE
- Wooden-frame
Tablet Key Features
Parameter
| System | CPU | RK3568 Quad core cortex A55 | |
| RAM | 4GB | ||
| Internal memory | 32GB | ||
| Operation system | Android 14 | ||
| Display | Panel Size | 21.5"LCD | |
| Panel Type | IPS | ||
| Resolution | 1920*1080 | ||
| Display Colors | 16.7M Colors | ||
| Color Gamut | 72% NTSC | ||
| Viewing angle | R/L 89/89, U/D 89/89 | ||
| Display mode | Normally black | ||
| Contrast ratio | 3000:1 | ||
| Response Time | 7ms | ||
| Back-light Type | Eled | ||
| Luminance | 250cdm2 | ||
| Aspect Ratio | ,16:9 | ||
| Touch | Model Type | Capacitive touch screen | |
| Number of points | 10-Point | ||
| Interface for touch | I2C | ||
| Network | WiFi | IEEE 802.11b/g/n/a/ac | |
| Bluetooth | Bluetooth 5.4 | ||
| Ethernet | 10M/100M/1000M | ||
| Interface | RJ45 | Ethernet interface | |
| USB | USB 2.0 HOST | ||
| USB | USB 3.0 HOST | ||
| Type-C | Full Function ( Except for charging function ) | ||
| HDMI IN | Support 800*600,1024*768,1280*720,1280*800,1280*1024,1366*768,1600*900,1920*1080,3840*2160, etc | ||
| Power Jack | DC power input | ||
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC,AV1, etc., support up to 8K@60fps | |
| Audio format | MP3/WMA/AAC/WAV/OGG, etc | ||
| Photo | JPEG/PNG/GIF,etc | ||
| Other | Product Colors | White | |
| Outer frame | wooden-frame | ||
| Outer frame color | Black/White/Wood Grain | ||
| VESA | 75mm*75mm | ||
| Button | Power/Vol+/Vol- | ||
| G-sensor | Support | ||
| Speaker | 4Ω*5W*2 | ||
| NFC |
Optional , 13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards |
||
| Language | Multi-language | ||
| Certificates | CCC/CE/FCC,Google EDLA | ||
| POE | Optional （IEEE802.3bt, up to 60W ) | ||
| Working Surrounding | Working Temperature | 0℃---40℃ | |
| Storage Temperature | -20℃---60℃ | ||
| Working Humidity | 20~80%RH | ||
| Storage Humidity | 10~95%RH | ||
| Accessories | Adapter | 12V/3A | |
| AC Cable | L=1.5m | ||
| User manual | *1 | ||
Products Description
21.5Inch Screen
The 21.5-inch screen offers the perfect balance between size and usability—large enough to deliver immersive Full HD content, yet compact enough for versatile wall-mounted or kiosk installations. It’s ideal for digital signage, self-service terminals, and interactive touch displays in retail, hospitality, and healthcare environments. With a wider viewing angle and more screen real estate, your content becomes more impactful, engaging, and accessible.
RK3568 Processor Advantages
Equipped with the RK3568 quad-core Cortex-A55 processor, this device delivers stable and efficient performance for commercial applications. It supports 4K video decoding, smooth multitasking, and enhanced data processing—making it ideal for running digital signage, interactive apps, and media content without lag. Its industrial-grade reliability ensures long-term operation even in demanding environments.
Android 14 System
Running on Android 14 ensures better performance, enhanced privacy controls, and longer OS support—ideal for business-critical applications. It offers improved multitasking, advanced device management, and stronger app compatibility, making it perfect for retail kiosks, digital signage, and enterprise deployment.
10-Point Capacitive Touch
This tablet is equipped with a 10-point capacitive touch screen for precise and sensitive multi-touch control. Users can smoothly perform complex gestures such as pinching, swiping, and zooming, making it ideal for interactive applications such as retail, hospitality, education, and self-service terminals.

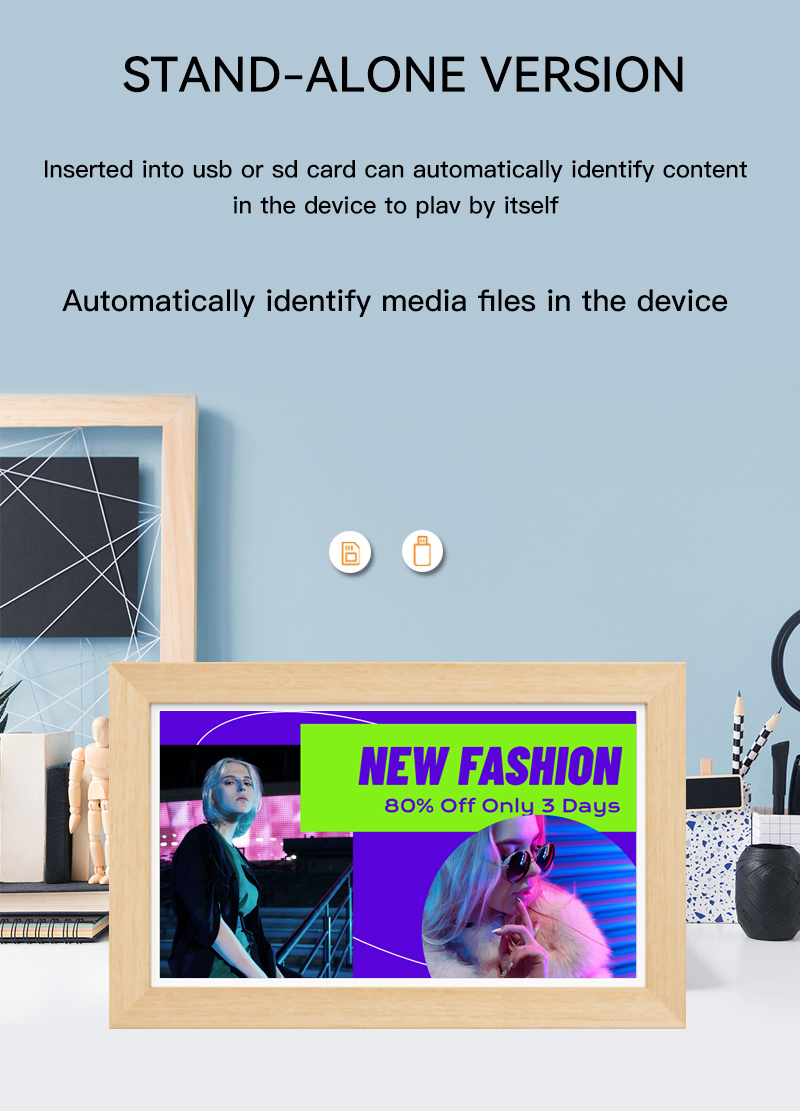

STAND-ALONE VERSION
The stand-alone version operates independently without relying on external PCs or servers. This makes deployment faster, system maintenance simpler, and installation more flexible—especially for digital signage, self-service kiosks, and smart retail environments. With built-in processing power, storage, and connectivity, it delivers a plug-and-play experience ideal for commercial use.
Packaging
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
