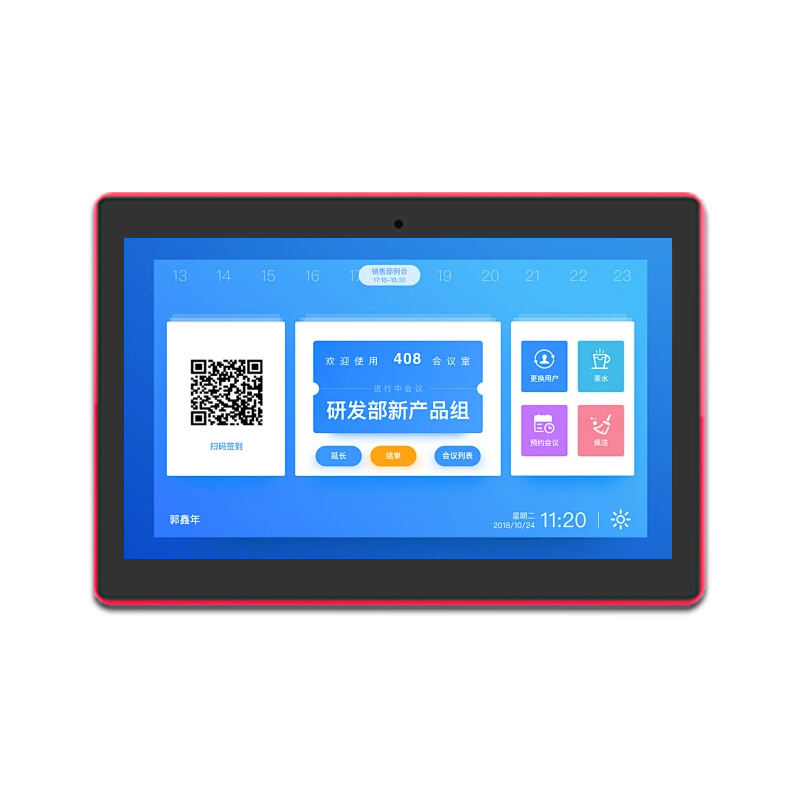

15.6Inch RK3566 NFC POE Power Tablet PC Wall Mounted Meeting Android Tablet With Led Light

This conference control tablet has a 15.6-inch screen, is equipped with an RK3566 processor and Android 11 system, and can provide smooth and high-quality services. This conference tablet supports NFC/RFID function, which can be used to quickly check in and out. The device supports POE, which is convenient for the device to provide power through the network cable when there is no power supply, making installation more convenient. The wall-mounted design, with the effect of lights on all four sides, makes it easier for the device to attract the user's attention. It can support customized memory matching, so that your choice is not single. If you are interested, please contact us and we will reply to you as soon as possible.

  • Video
  • Features
  • Parameter
  • Products Description
  • Packaging
  • Recommended Products
Video
Features

Tablet Key Features

  • CPU:RK3566
  • RAM:2/4 GB
  • Memory:16/32/64 GB
  • System:Android 11
  • Panel: 15.6Inch LCD Panel
  • Resolution: 1920x1080
  • Support NFC/RFID POE
  • Four sides led light strip
Parameter
System CPU RK3566  Quad core cortex A55
RAM 2/4GB
Internal memory  16/32/64GB
Operation system Android 11
Touch screen 10-Point capacitive touch
Display Panel 15.6"LCD panel
Resolution 1920*1080
Display mode Normally black
Viewing angle 85/85/85/85(L/R/U/D)
Contrast ratio 800
Luminance 250cd/m2
Aspect Ratio ,16:9
Network WiFi 802.11b/g/n/a/ac
Ethernet 100M/1000M ethernet
Buletooth Bluetooth 4.2
Interface Card slot SD card ,Max support to 64GB
SIM Slot 4G  Flow card
USB  USB host
Micro USB  Micro USB OTG
USB  USB for serial(TTL  Level),      Optional for USB Host
RJ45  Ethernet interface  ( POE function  standard  IEEE802.3at,POE+,class 4, 25.5W  )
Power jack  DC power input
Earphone 3.5mm earphone + Micphone
Media play Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other 4G Module Optional

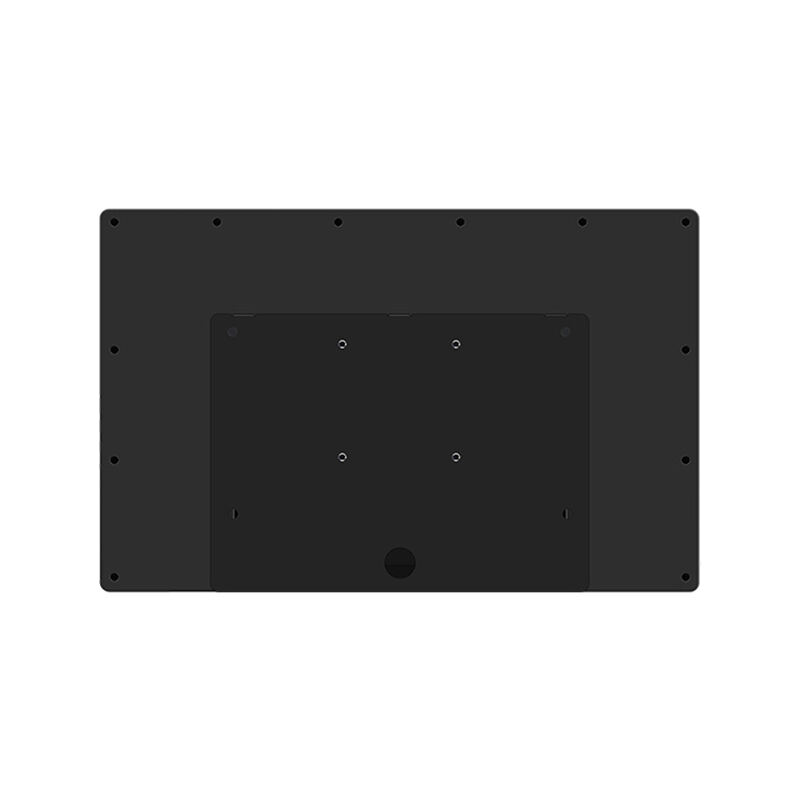

VESA 75*75mm
Speaker 2*3W
Microphone Single microphone
LED light bar LED light bar with RGB and mixed color
RFID Optional ,  125k,ISO/IEC 11784/11785,Support to EM4100,TK4100/GK4100,EM4305,T5577
NFC Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Camera General angle 5.0MP
Working temp 0--40degree
Certificates CE/FCC
Language Multi-language
Accessories Adapter Adapter,12V/2.0A
User manual yes
Products Description

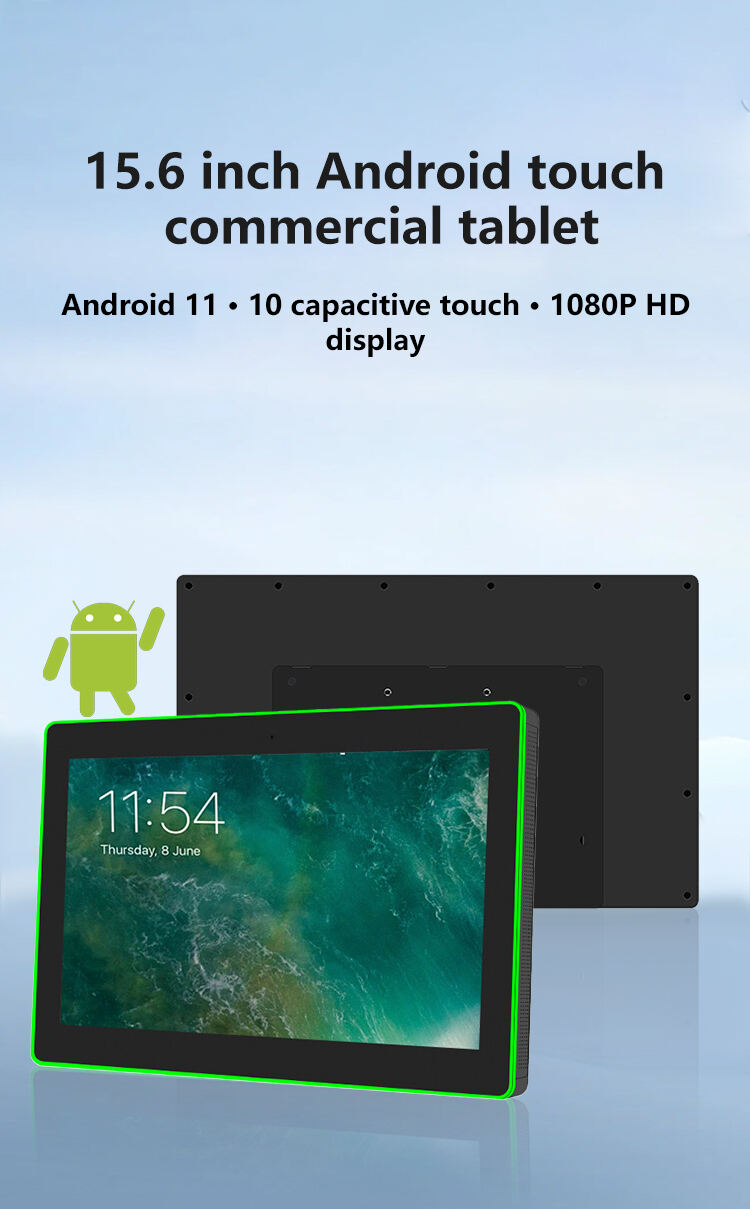

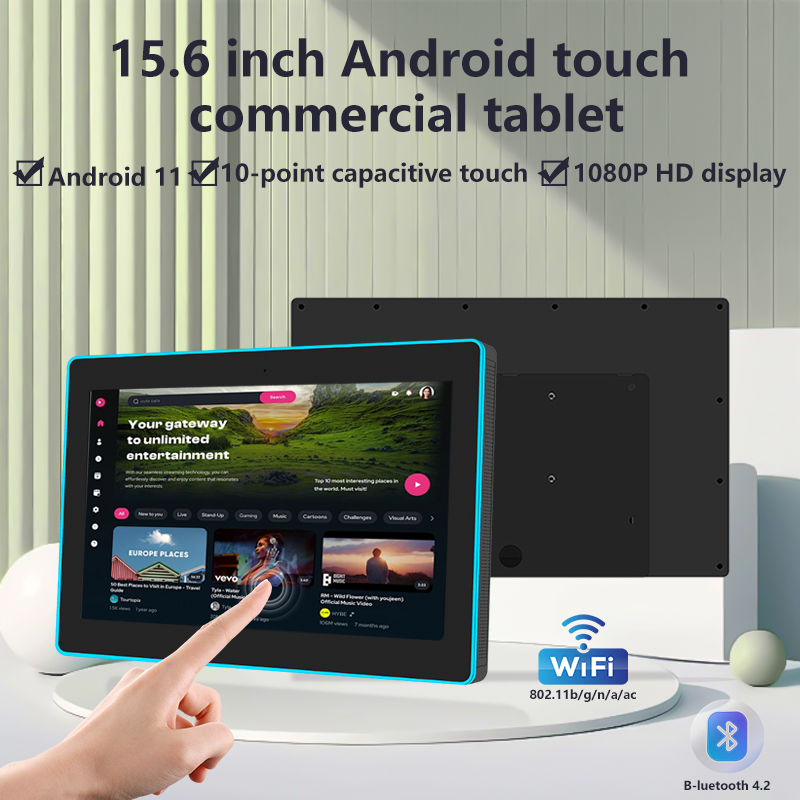

15.6Inch screen

The design of this tablet is designed with a 15.6 -inch with moderate size. Compared with the 13.3 -inch tablet, the tablet is larger, the content of the display is clearer, more detailed, and reduced the demand for scaling and scrolling. The larger screen, the more accurate the touch, the better the viewing effect, and the more comfortable the user uses.

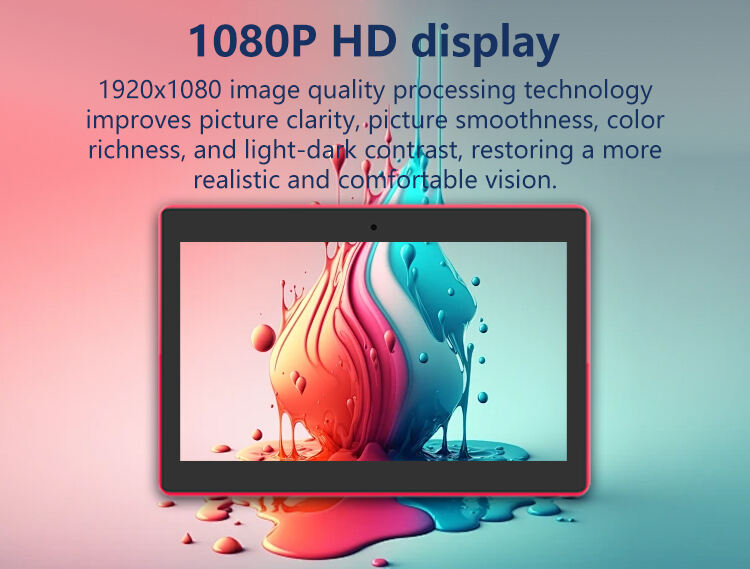

1080P HD display

With the resolution of 1920x1080, more details can be displayed on a 15.6 -inch screen, which is very suitable for displaying advertisements. 1080P has good compatibility, can maintain consistent display effects on different devices, and has a wide range of applicability. 1080P can play high -definition video content smoothly, especially suitable for advertising video playback.

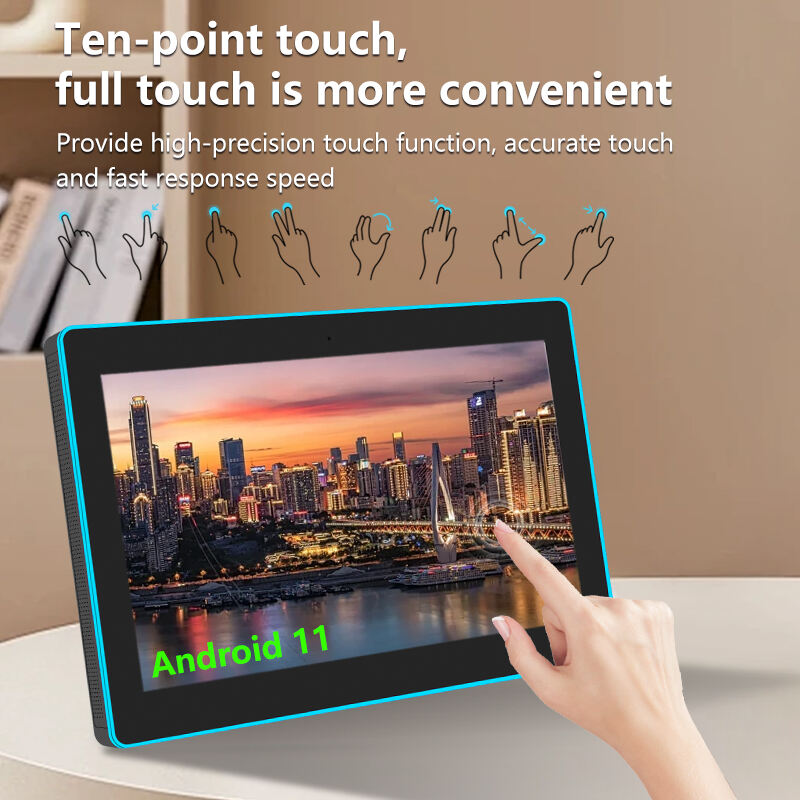

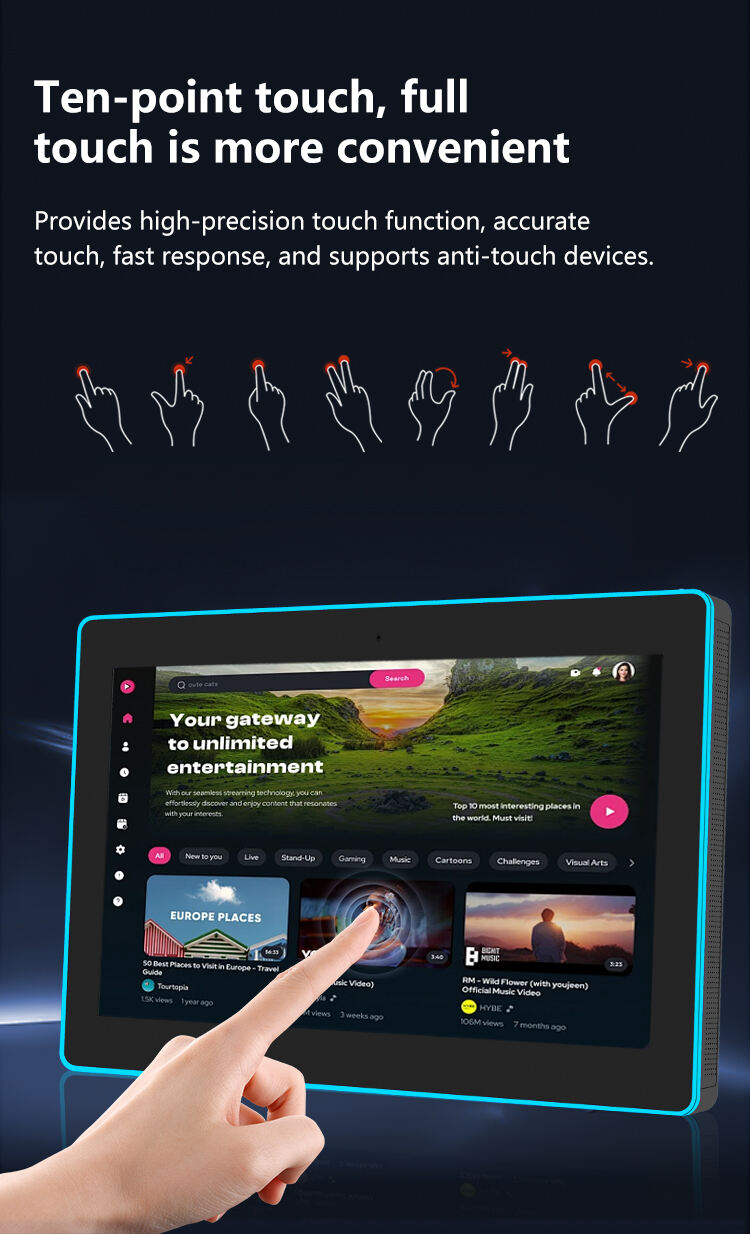

10-Point Capacitive Touch

Support 10 -point capacitor touch, which can support multi -person operation at the same time. Touch is more sensitive, fast response, and user operations are better. Users can query advertising information and promotional prices by clicking and touching the screen to enhance the interactive experience.




RK3566 CPU

The use of RK3566 is a processor of the quad-core Cortex-A55 architecture. It provides strong performance and excellent low power performance to ensure the long-term stable operation of the equipment.




Custom Memory

Supports customized memory capacity. We can customize 2+16/4+32GB or other memory according to user needs, giving users more choices and meeting their needs.




POE Power

Supports Power over Ethernet (PoE) for power supply making it an ideal choice for deployments in facilitiesor locations where it is difficult to reach power outlets without worrying about battery loss.

tablets POE.jpg

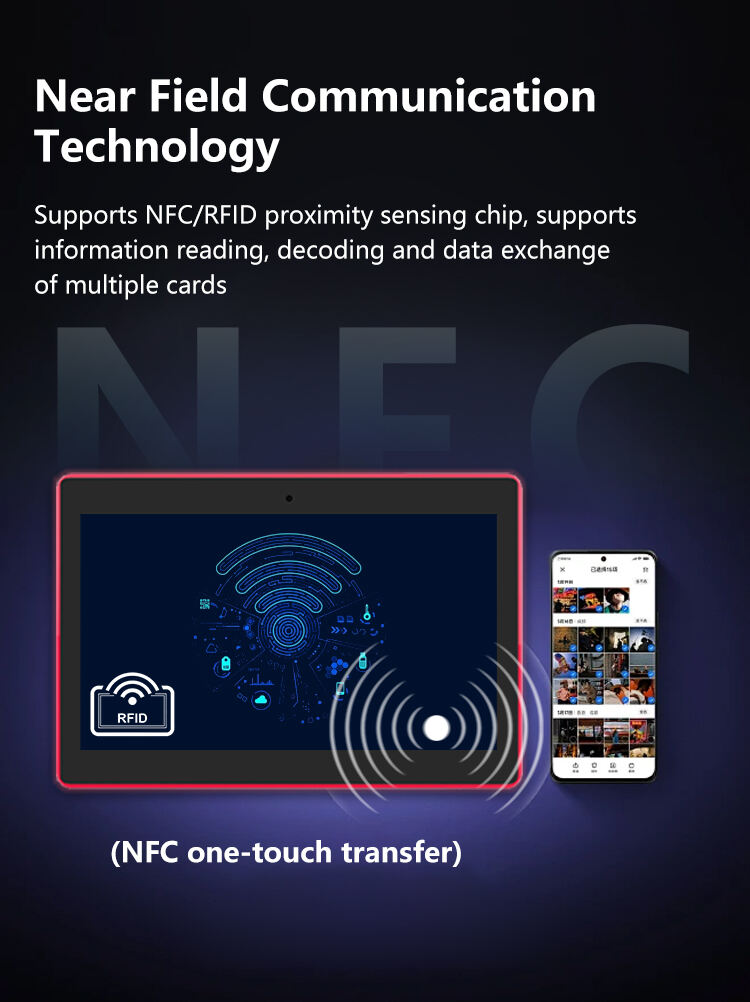

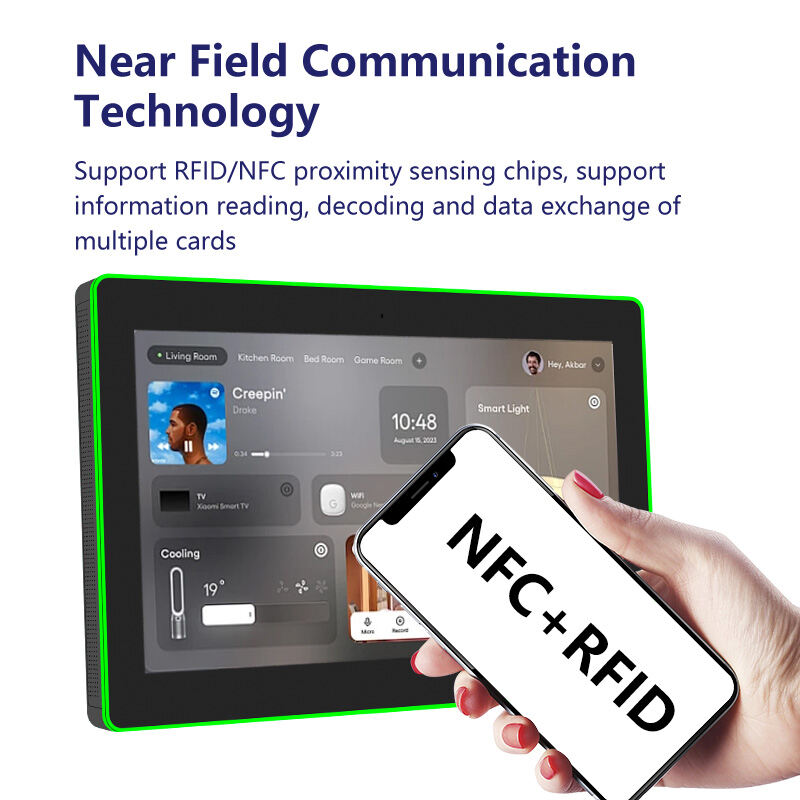

Support NFC/RFID

Supports NFC/RFlD proximity sensing chip, supportsinformation reading, decoding and data exchangeof multiple cards.

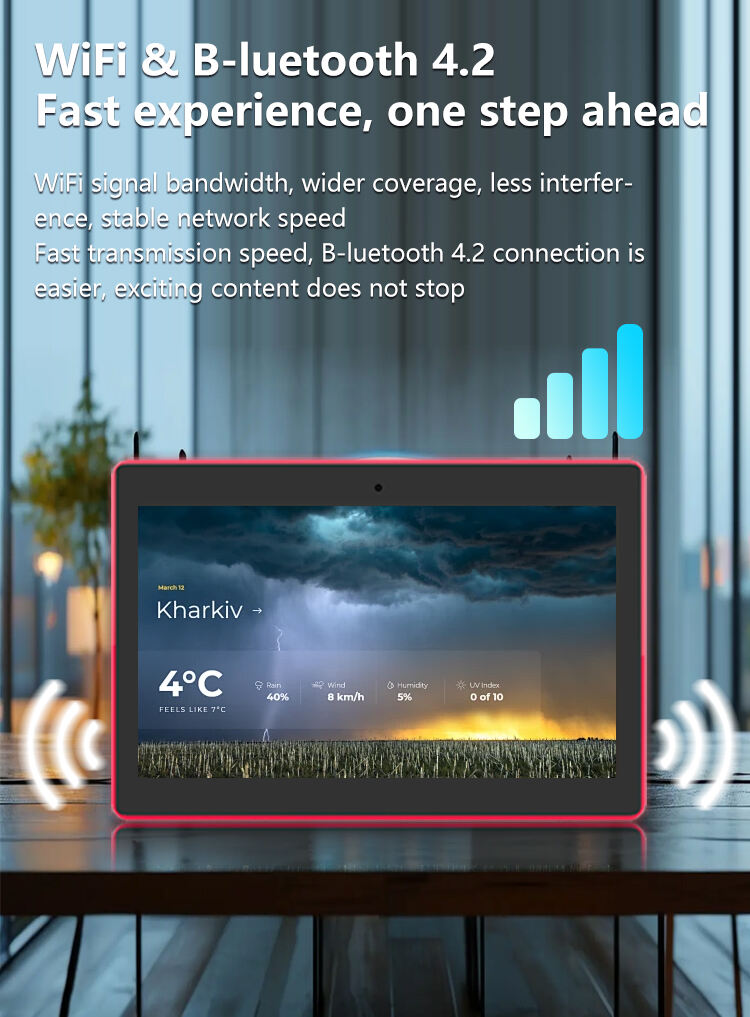

WIFI Bluetooth

Support links of wireless networks such as WIFI, which is convenient to use in an environment without network cables. The operation is more convenient. The device can connect to WiFi to download application software. Support Bluetooth 4.2, you can connect multiple external devices, such as audio and keyboards, adding the flexibility of the device.

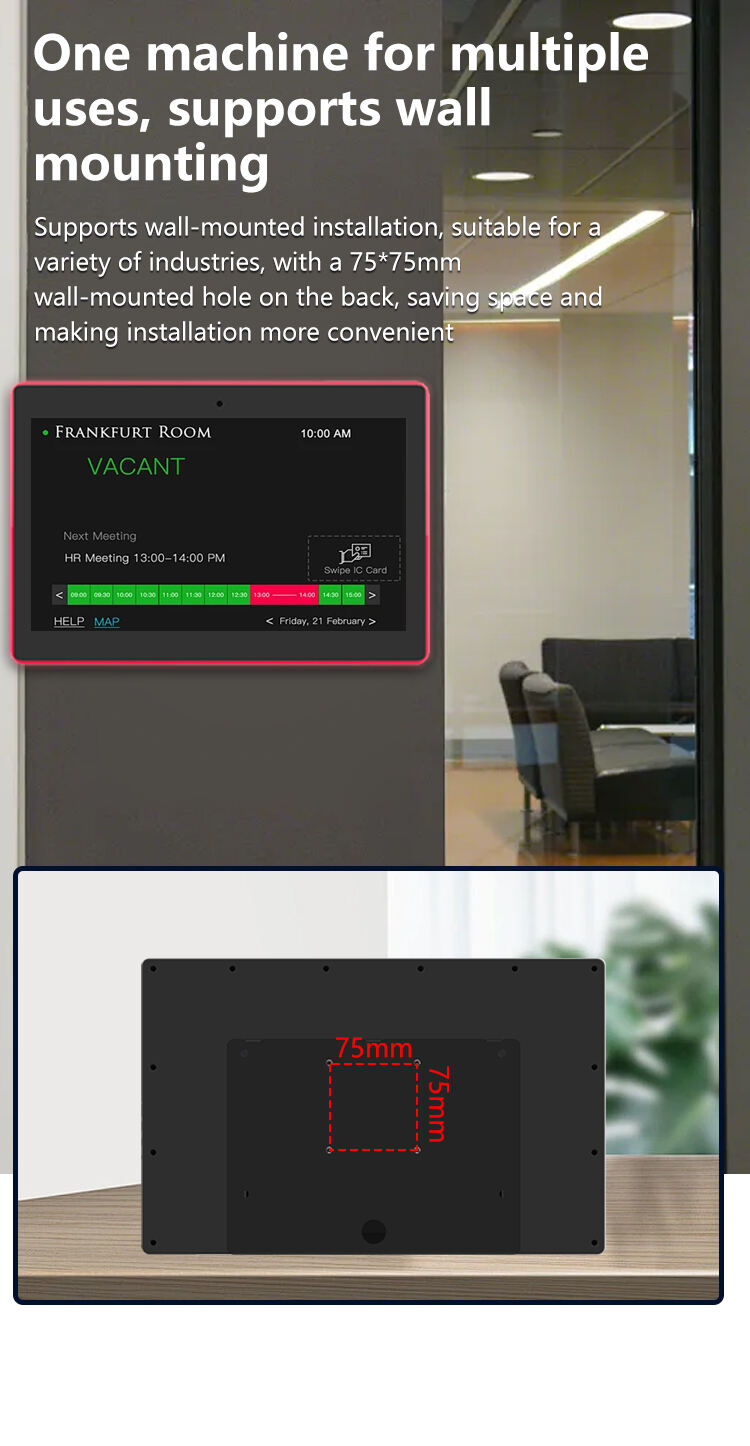

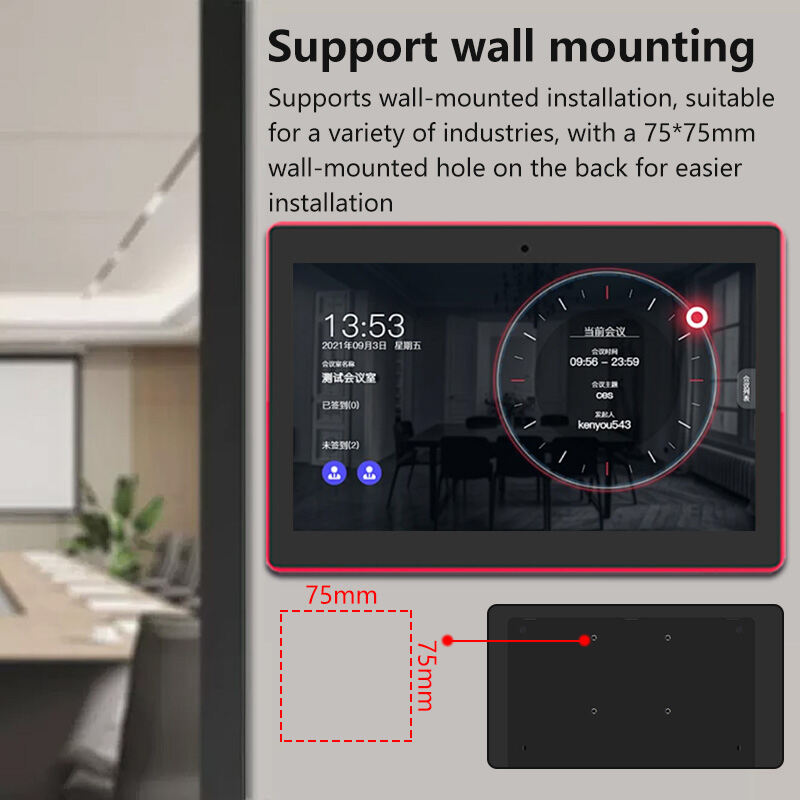

Wall Mounted display

The installation method of wall -mounted is used to reduce the mess brought by ground brackets, wires, etc., and enhance the beauty and neatness of the overall environment. The method of wall hanging is easier to attract customers' attention. You can adjust the height and angle of the device as needed to enhance the user's visual experience.


Packaging

Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
