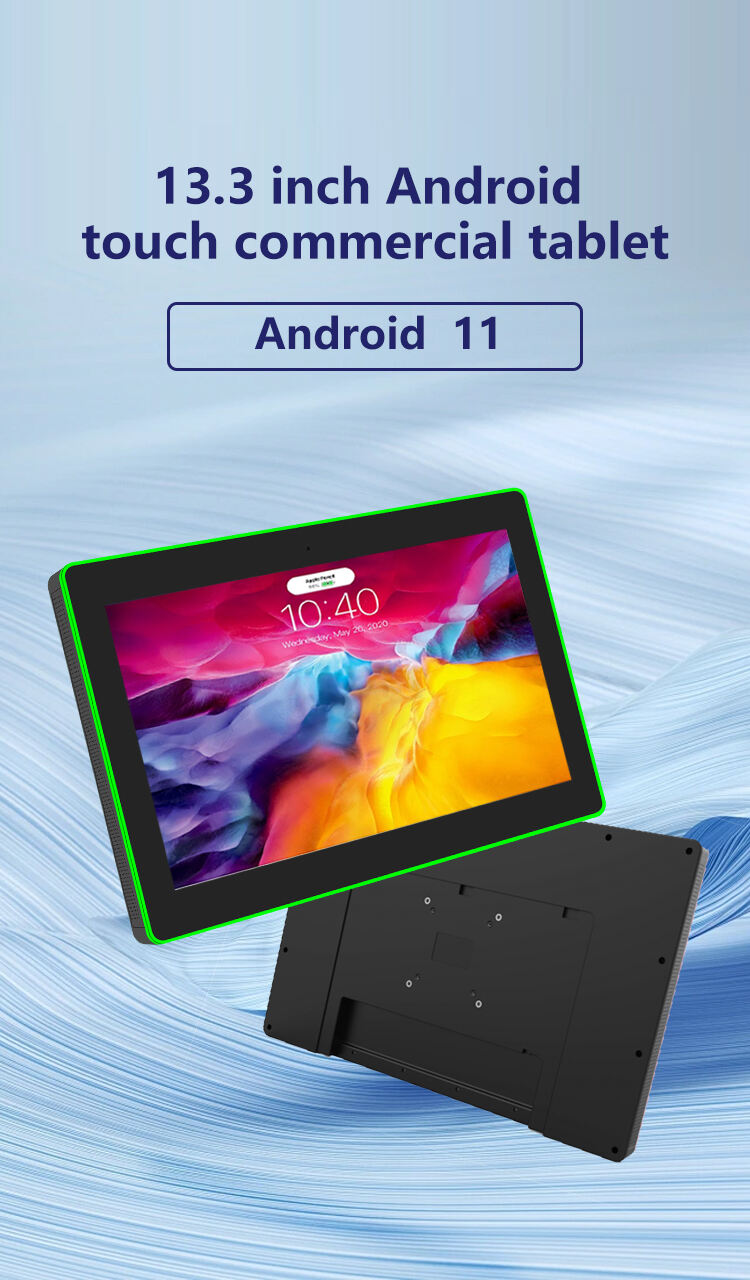

13.3Inch Wall Mounted Conference Room Tablet NFC/RFID POE Commercial Android Tablet Surrounding Led Light
This conference control tablet features a 13.3-inch screen with 1080p resolution and is powered by the RK3568 processor along with the Android 11 operating system, ensuring smooth performance and reliable service. It supports NFC/RFID functions, allowing users to check in and out quickly and efficiently. The device also supports POE, enabling power supply through a network cable, which simplifies installation in environments without direct power sources. With 4G connectivity and 10-point capacitive touch, it offers a responsive and flexible user experience. The wall-mounted design is enhanced by lighting on all four sides, making the device visually attractive and noticeable. Custom memory configurations are available to meet different user needs. If you're interested, please contact us, and we will get back to you as soon as possible.
- Video
- Features
- Parameter
- Products Description
- Packaging
- Recommended Products
Video
Features
- CPU:RK3568
- RAM:2/4 GB
- Memory:16/32/64 GB
- System:Android 11
- Panel: 13.3 Inch LCD Panel
- Resolution: 1920x1080
- Support NFC/RFID POE
- Four sides led light strip
Tablet Key Features
Parameter
| System | CPU | RK3568 Quad core cortex A55 | |
| RAM | 2GB | ||
| Internal memory | 16GB | ||
| Operation system | Android 11 | ||
| Touch screen | 10-Point capacitive touch | ||
| Display | Panel | 13.3"LCD panel | |
| Panel Type | IPS | ||
| Resolution | 1920*1080 | ||
| Display Colors | 16.7M Colors | ||
| Viewing angle | R/L 85/85, U/D 85/85 | ||
| Display mode | Normally black | ||
| Contrast ratio | 1500:1 | ||
| Response Time | 30ms | ||
| Back-light Type | ELed | ||
| Luminance | 300cd/m2 | ||
| Aspect Ratio | ,16:9 | ||
| Network | WiFi | IEEE 802.11a/b/g/n/ac | |
| Buletooth | Bluetooth 5.4 | ||
| Ethernet | 10M/100M/1000M ethernet | ||
| Interface | SIM Slot | 4G Flow Card | |
| SD Slot | SD card ,Max support to 64GB | ||
| Earphone | 3.5mm earphone + Microphone | ||
| USB | USB 3.0 host | ||
| USB | USB for serial ( RS232 Level ) ，Optional USB Host | ||
| RJ45 | Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4， 25.5W ) | ||
| Micro USB | Micro USB OTG | ||
| Power jack | DC power input | ||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC, etc.support up to 4K | |
| Audio format | MP3/WMA/AAC/WAV/OGG, etc | ||
| Photo | JPEG/PNG/GIF,etc | ||
| Other | Product color | White/Black | |
| VESA | 75x75mm | ||
| Button | Power | ||
| G-sensor | Support 90 degrees | ||
| Speaker | 2*3W | ||
| Microphone | Single microphone | ||
| NFC |
Optional，13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards |
||
| RFID | Optional ,125k,ISO/IEC 11784/11785,支持EM4100，TK4100/GK4100 | ||
| LED Light bar | LED Light bar，RGB | ||
| Camera | 5.0MP with USB type | ||
| 4G Moduel | Optional | ||
| Language | Multi-language | ||
| Certificates | CCC/CE/FCC | ||
| Working Surrounding | Working Temperature | 0℃---40℃ | |
| Storage Temperature | -20℃---60℃ | ||
| Working Humidity | 20~80%RH | ||
| Storage Humidity | 10~95%RH | ||
| Accessories | Adapter | Adapter,12V/2A | |
| User manual | *1 | ||
Products Description
13.3Inch screen
It uses a 13.3-inch screen. Compared with larger tablets, the 13.3-inch screen saves more space and is suitable for installation at the entrance of a conference room or in a small meeting space. It has a clear visual effect without being bulky.

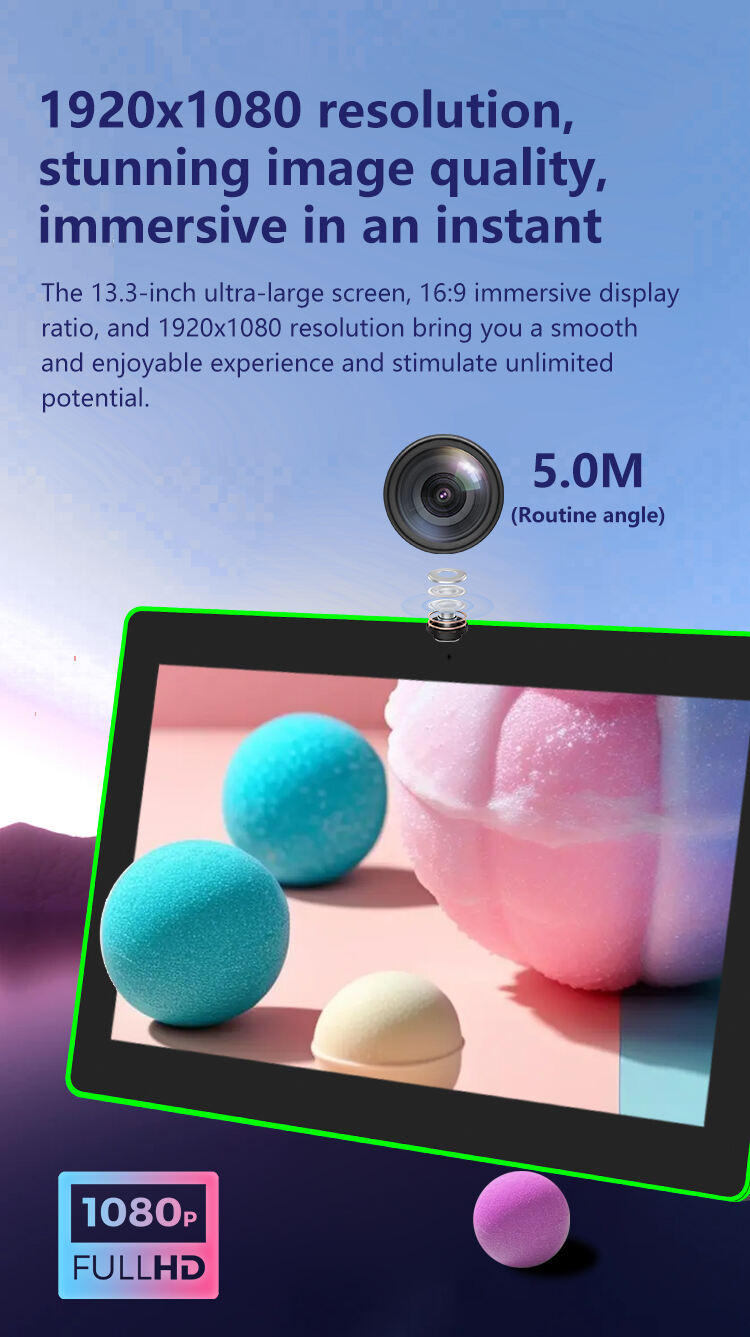

1080P HD display
A 1080p resolution offers clear and detailed visuals, making it ideal for displaying meeting schedules, attendee information, and announcements. With more content visible on screen at once, it improves efficiency and user experience. The sharp and smooth display enhances professionalism and is comfortable for long-time viewing. As a widely supported format, it ensures excellent compatibility across various applications.

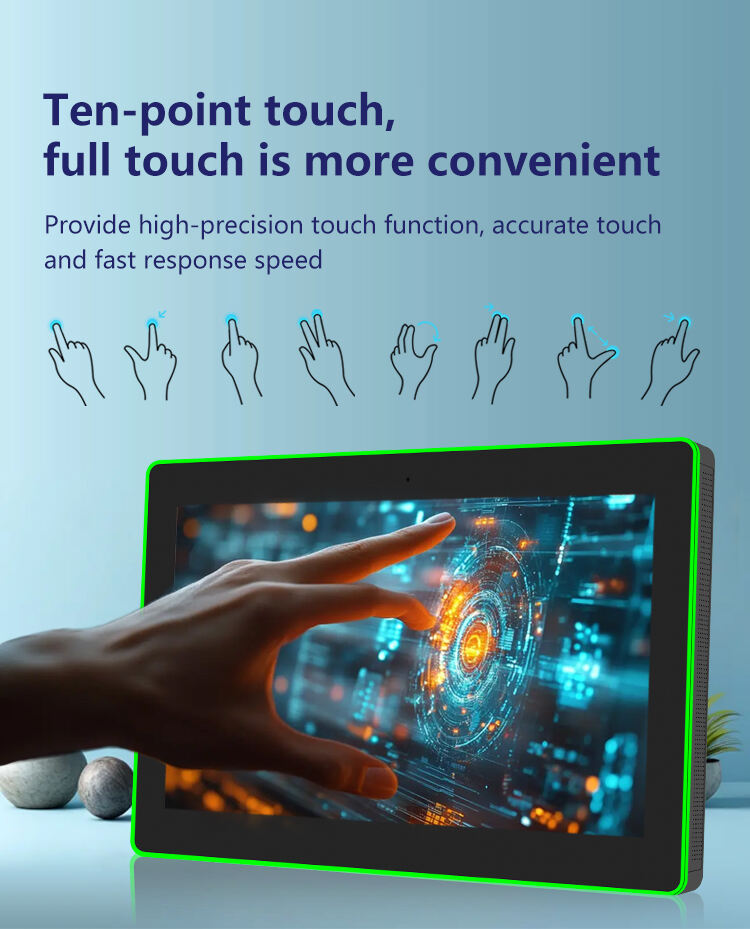

10-Point Capacitive Touch
The 10-point capacitive touch screen allows for smooth, precise, and responsive multi-touch interactions, supporting up to ten simultaneous touches. This makes it ideal for collaborative use, gesture control, and dynamic content navigation. It enhances the user experience in meeting rooms, kiosks, and interactive displays with intuitive, smartphone-like operation.

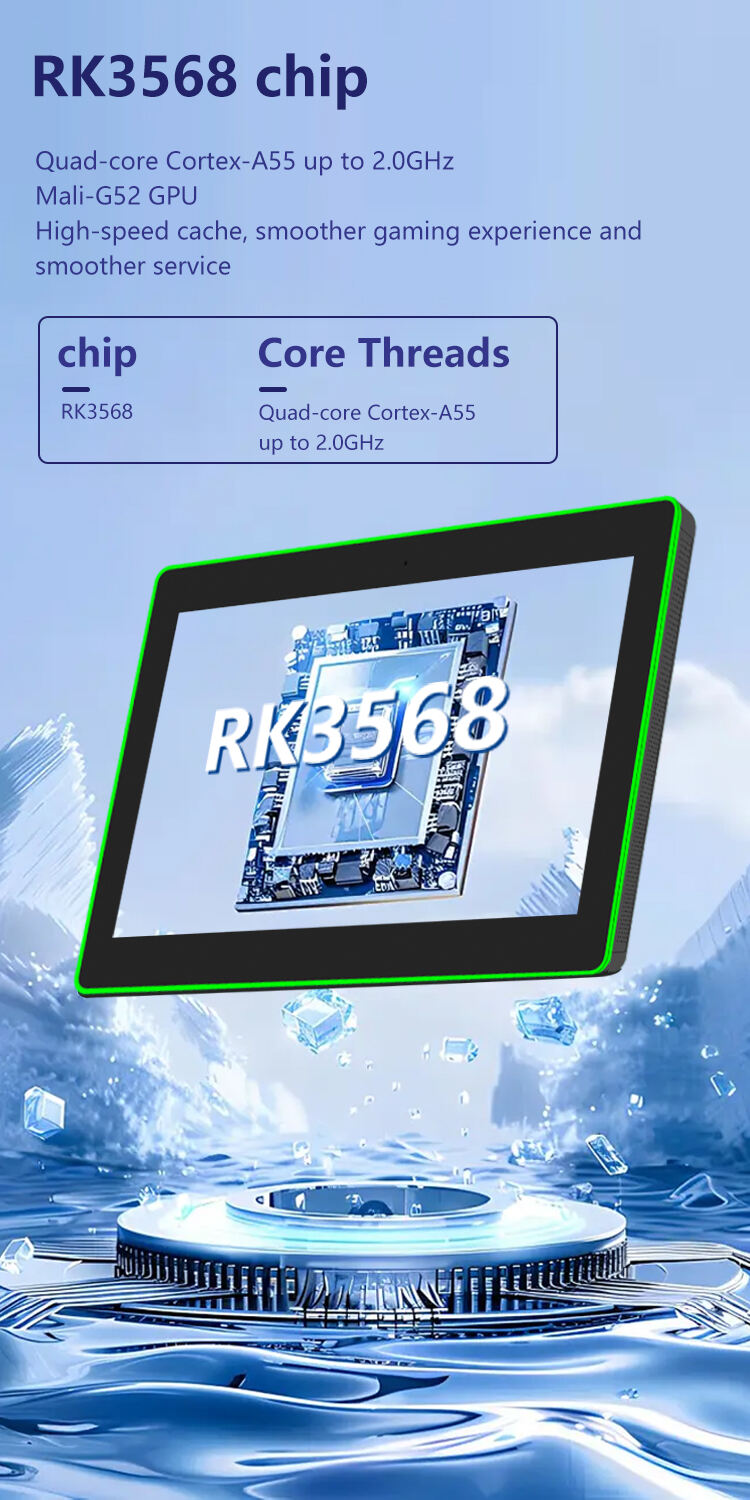

RK3568 CPU
Powered by the RK3568 quad-core processor, this device offers strong performance with low power consumption. It supports Android 11 and a wide range of I/O interfaces, ensuring excellent compatibility and easy integration. Ideal for multimedia, commercial, and industrial applications, RK3568 provides long-term stability and smooth system operation.

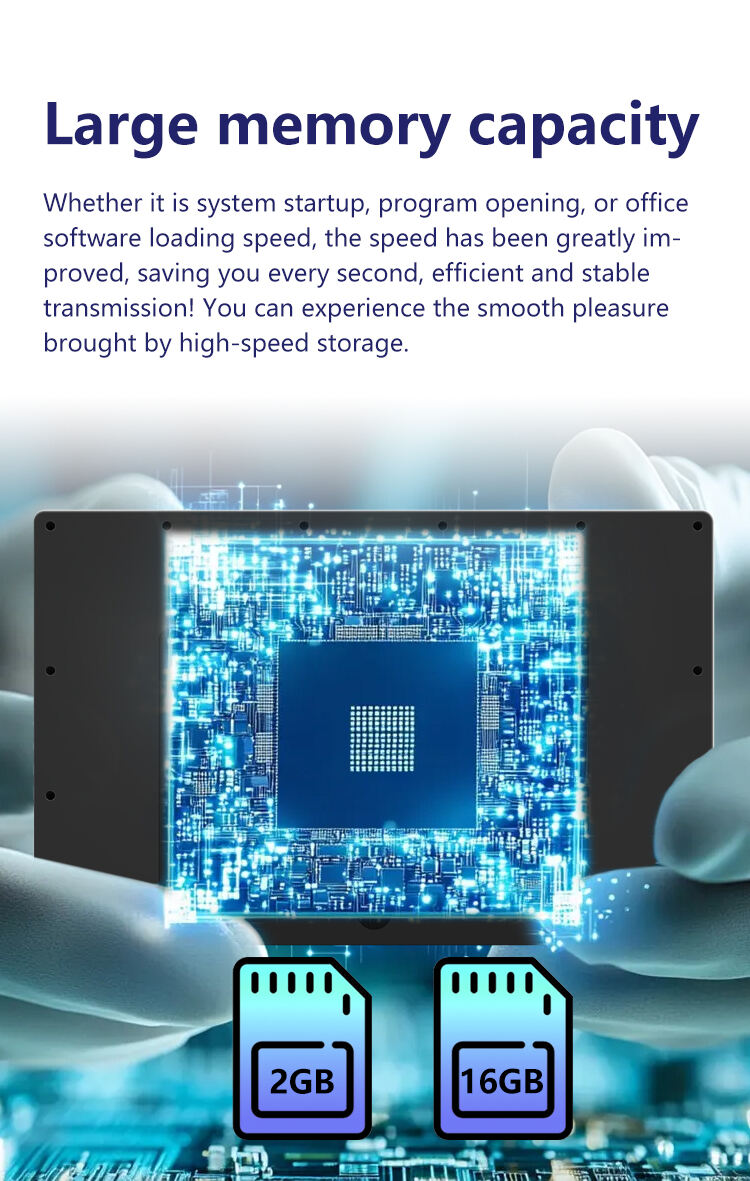

Custom Memory
This device supports customizable memory configurations to suit various application needs, including RAM options of 2GB or 4GB, and storage (ROM) options of 16GB, 32GB, or 64GB. Whether for light meeting room use or more demanding commercial scenarios, users can select the right specification for optimal performance and cost-efficiency.

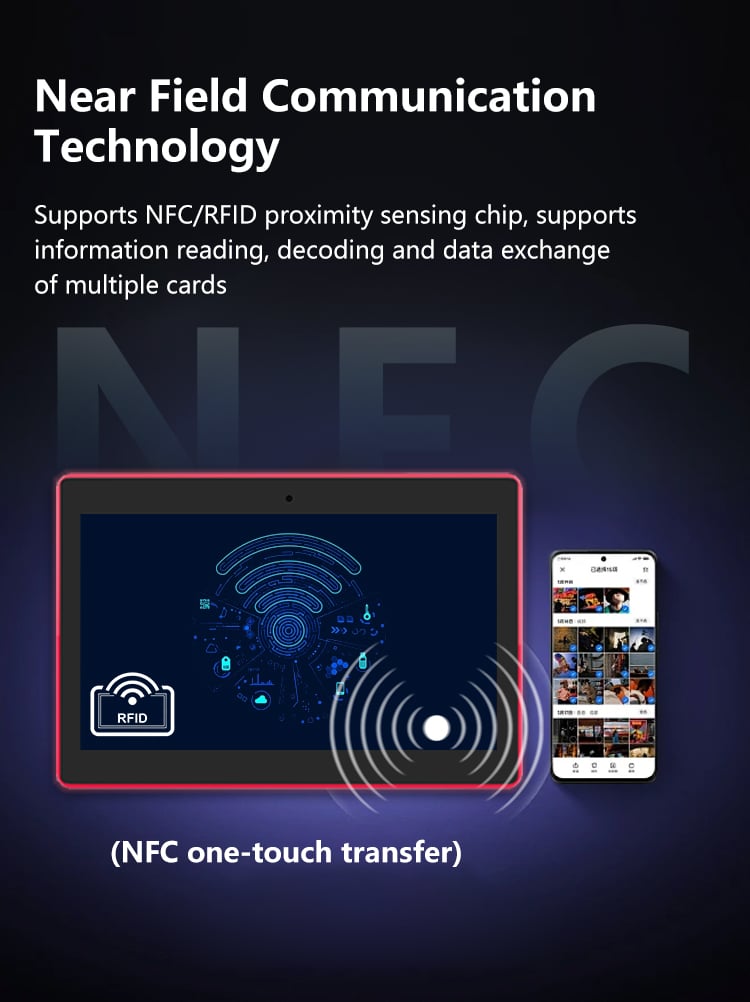

Support NFC/RFID
Equipped with NFC/RFID support, this device enables fast and contactless user identification—ideal for meeting check-ins, staff attendance, and access control. It enhances operational efficiency, hygiene, and security, while ensuring easy integration with existing card or tag systems, making it a smart choice for modern office environments.
WIFI Bluetooth
With built-in WiFi and Bluetooth 5.4, the device ensures fast, stable wireless connectivity. WiFi provides reliable internet access, while Bluetooth 5.4 offers low-power, long-range connections to peripherals like speakers, keyboards, or smartphones. Together, they deliver flexible and efficient performance for any smart meeting environment.

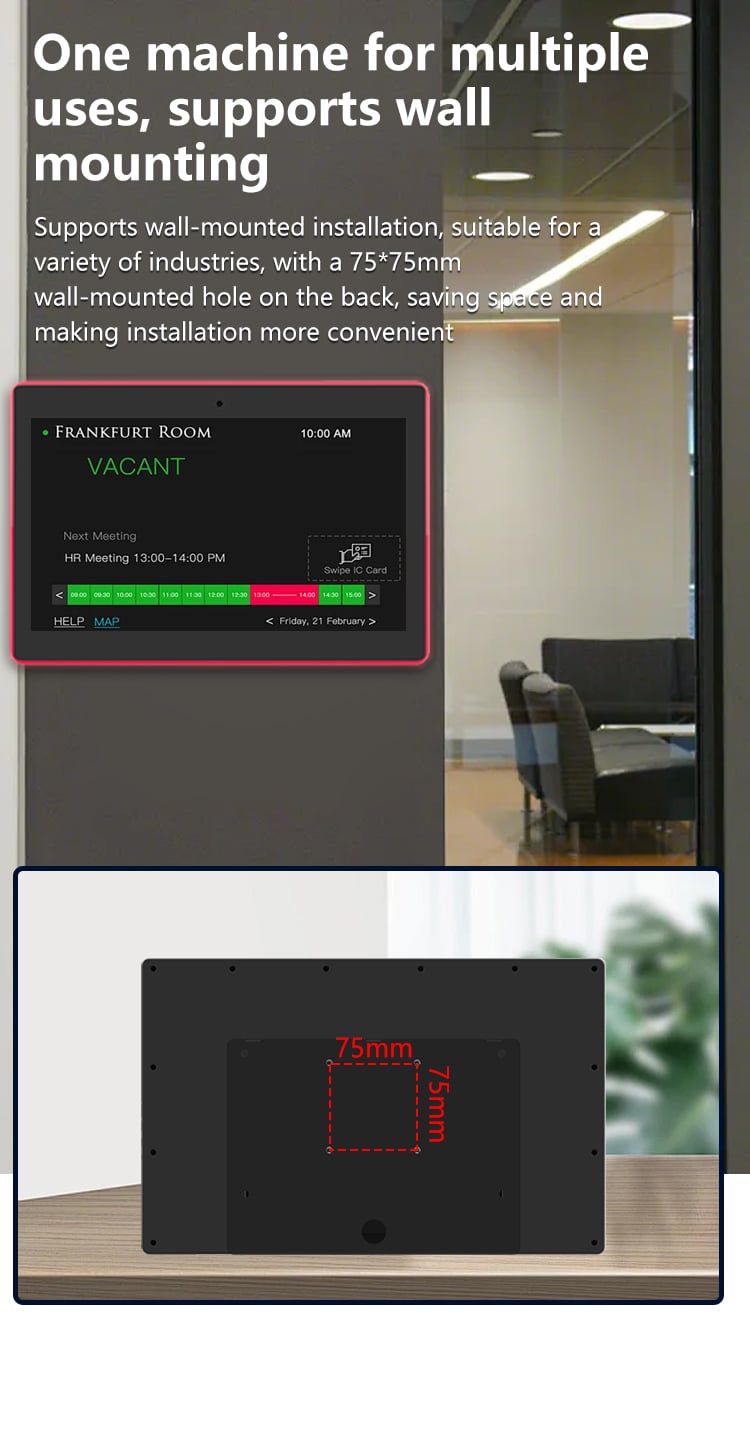

Wall Mounted display
The installation method of wall -mounted is used to reduce the mess brought by ground brackets, wires, etc., and enhance the beauty and neatness of the overall environment. The method of wall hanging is easier to attract customers' attention. You can adjust the height and angle of the device as needed to enhance the user's visual experience.
Packaging
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
